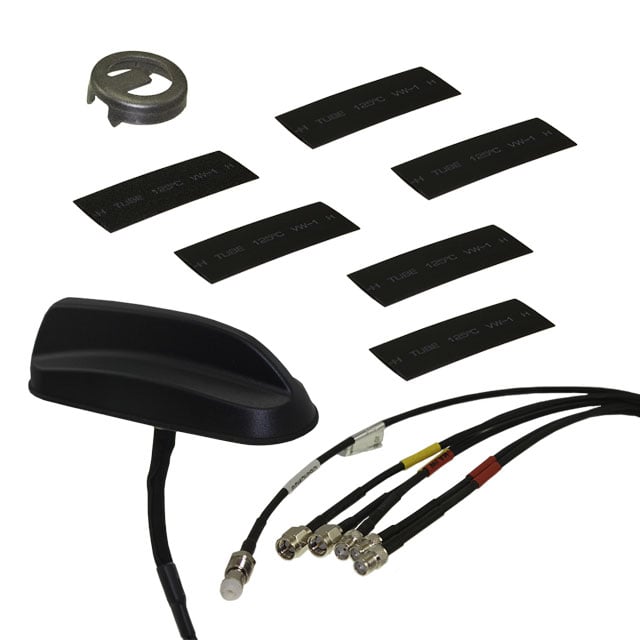

2332157-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

RF Antennas

Antenna Connector Type :

FME Female, SMA Male, SMA Female

Maximum Operating Temperature :

+ 80 C

Width :

60 mm

IP Rating :

IP66

Height :

50 mm

Cable Length :

300 mm

Gain :

26dB

Packaging :

Bag/Box

Input Impedance :

50Ohm

Antenna Type :

MIMO WiFi

Length :

170 mm

RoHS :

Details

Antenna Mounting :

Panel

Subcategory :

Antennas

Cable Type :

RG174 x 6

Rad Hardened :

No

Number of Bands :

2 Band

Manufacturer :

TE Connectivity

Input Power :

25W

Product Type :

Multiband Antennas

Brand :

TE Connectivity

Center Frequency :

700 MHz, 800 MHz, 850 MHz, 900 MHz, 1575 MHz, 1602 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2450 MHz, 2500 MHz, 2700 MHz, 3300 MHz, 3500 MHz, 3600 MHz, 3800 MHz, 5000 MHz, 5200 MHz, 5500 MHz, 5800 MHz

Polarization :

Vertical

Operating Temperature Classification :

COMMERCIAL

Series :

MIMO

Mounting Style :

Direct / Permanent Mount

Operating Temperature (Min) :

-40C

Impedance :

50(ohm)

VSWR :

2

Product :

Vehicle Antennas

Type :

MIMO

Product Category :

Antennas

Termination Style :

Connector

Maximum Input Power :

25000(mW)

Application :

Cellular Application, Satellite Application, Wireless Application

Operating Temperature (Max) :

80C

Minimum Operating Temperature :

- 40 C
