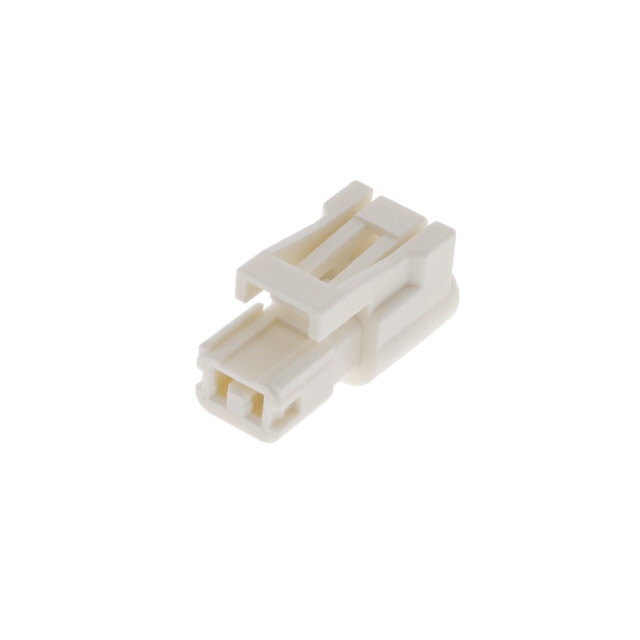

2321918-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Pitch :

2.5 mm

Product Height (mm) :

15.85(mm)

For Use With :

AMP Signal Double Lock Series 2321921-1, 1-2321921-1 Socket Contacts

Gender :

PL

Number of Contact Rows :

1

Product :

Wire Housings

Housing Gender :

Male

IP Rating :

-

Termination Style :

Crimp

Current Rating :

-

Body Orientation :

Straight

Housing Color :

Natural

Pitch (mm) :

2.5(mm)

Product Depth (mm) :

8.83(mm)

Contact Gender :

Pin (Male)

Voltage Rating Max :

250VAC

Product Length (mm) :

7.84(mm)

Wire Gauge :

22-26(AWG)

Contact Material :

-

Operating Temp Range :

-30C to 105C

Mounting Style :

Cable Mount / Free Hanging

Product Category :

Headers and Wire Housings

Housing Material :

Polyamide 6/6

Flammability Rating :

UL 94 V-0

Product Type :

Headers and Wire Housings

Application :

Wire-to-Wire

Number of Rows :

1 Row

Current Rating (Max) :

3/Contact(A)

Minimum Operating Temperature :

- 30 C

Manufacturer :

TE Connectivity

Type :

Housing

Number of Positions :

2 Position

Maximum Operating Temperature :

+ 105 C

Number of Contacts :

2(POS)

Subcategory :

Headers and Wire Housings

Brand :

TE Connectivity

RoHS :

Details
