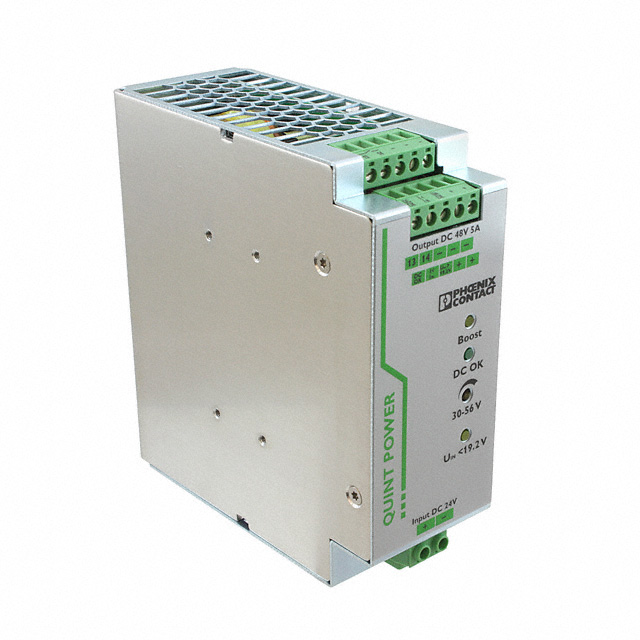

2320128

Manufacturer :

Phoenix Contact

Product Category :

Output Power :

5.2W

Package / Case :

Module

JESD-30 Code :

X-XXMA-X

Voltage - Input (Max) :

32V

Isolation :

Isolated

Output Voltage :

48V

Number of Outputs :

1

Packaging :

Bulk

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Weight :

900g

Factory Lead Time :

7 Weeks

Current - Output 1 :

5A

Operating Temperature :

-25°C~70°C

Efficiency :

92.5%

Size / Dimension :

4.92Lx1.89W x 5.12 H 125.0mmx48.0mmx130.0mm

Nominal Input Voltage :

24V

Voltage - Input (Min) :

18V

Approval Agency :

CUL, UL

RoHS Status :

RoHS Compliant

Mounting Type :

DIN Rail

Number of Pins :

12

Output Current :

5A

Type :

Enclosed

Input Voltage-Nom :

24V

Applications :

ITE (Commercial)

Mount :

DIN Rail

Nominal Input Voltage (DC) :

24V

Published :

2009

Moisture Sensitivity Level (MSL) :

Not Applicable

Terminal Form :

UNSPECIFIED

Terminal Position :

UNSPECIFIED

Depth :

48mm

Max Power Dissipation :

240W

Number of Functions :

1

Height :

130.048mm

Series :

Quint

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED
