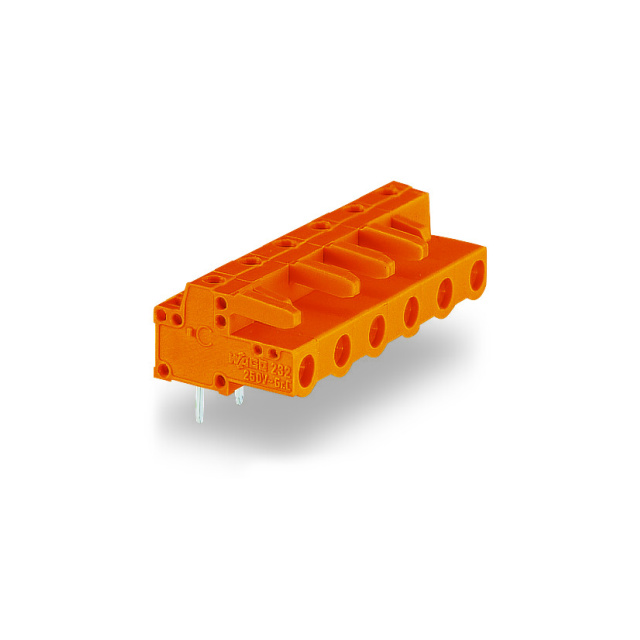

232-863

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Package :

Box

Wire Gauge or Range - mm² :

-

Rated surge voltage :

6

Type :

232-863

Packaging type :

Carton (box)

Insulation Height :

0.457 (11.60mm)

Length :

16.60mm

Temperature :

-60-85 °C

Type of electric connection :

Soldering connection

Contact Tail Length :

0.197 (5.00mm)

Torque - Screw :

-

Type of fastening :

Solder

Operating Temperature :

-60°C ~ 85°C

Contact Material :

COPPER ALLOY

Connection :

Print

Header Orientation :

90°, Right Angle

EU RoHS :

Compliant

Material Flammability Rating :

UL94 V-0

Pitch :

0.300 (7.62mm)

Number of Levels :

1

Series :

232

Total number of pins :

3

Wire Strip Length :

-

Height :

18.25mm

Approvals :

CB, UR

Width :

21.82mm

Manufacturer :

Wago

Inflammability class of insulation material according to with UL94 :

V0

HTS :

8536.69.40.40

Termination Style :

Solder

Pins per row :

3

ECCN (US) :

EAR99

Housing Material :

Polyamide (PA66), Nylon 6/6

Screw Size :

-

PPAP :

No

Rated current In :

12

Color :

Orange

Current :

15 A

Voltage :

300 V

No. of rows :

1

Connector contact surface :

Tin plated

Number of Contacts :

3 Pole

Number of Positions :

3

Material of contact surface :

Tin

Industrial packaging :

yes

Current - IEC :

12A

Pollution degree :

2

Features :

Retention Latches (Non-Wire Side)

Content :

100pc(s)

Positions Per Level :

3

Product Status :

Active

Plug Wire Entry :

-

Board contact surface :

Tin plated

Dim :

(L x W x H) 16.60 x 21.82 x 18.25 mm

Nominal voltage :

630V

Contact Finish :

Tin

Manufacturer part # :

232-863

Automotive :

No

CS :

7.62mm

Voltage - IEC :

630 V

Mounting Type :

Through Hole

Over voltage category :

III

Depth :

18.25mm

Contact Mating Finish :

Tin

Voltage - UL :

600 V

Wire Gauge or Range - AWG :

-

Ingress Protection :

-

Current - UL :

15 A
