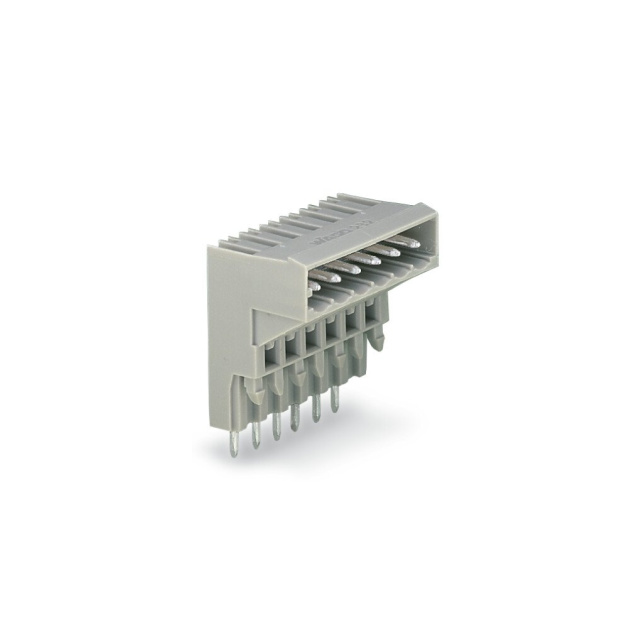

232-335

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Nominal current :

12A

Product Status :

Active

Temperature Range :

-76 to 212 Degrees F

Connector contact surface :

Tin plated

RoHS :

yes

Number of Rows :

1

Maximum Current Rating (A) :

10

Maximum Operating Temperature (°C) :

100

Mounting :

Through Hole

Package :

Box

Pin shape :

Square

Terminal Pitch (mm) :

5

Composition :

Polyamide

Width :

28.2mm

Ingress Protection :

-

Number of Poles :

5

Board contact surface :

Tin plated

Number of Contacts :

5

Body Orientation :

RIGHT ANGLE

Termination Style :

Solder

Dimensions :

82,5x52x20mm

Type :

Shrouded Header

Total number of pins :

5

Voltage - UL :

600 V

Case material :

Polyamide

Current - UL :

10 A

Packaging :

Box

Connection :

Print

HTS :

8536.69.40.40

Wire Gauge or Range - AWG :

-

Pins per row :

5

Operating Temperature :

-60°C ~ 100°C

Minimum Operating Temperature (°C) :

-60

Coil Power :

- mW

Voltage - IEC :

630 V

Material Flammability Rating :

UL94 V-0

Insulation Height :

1.024 (26.01mm)

Pitch :

0.197 (5.00mm)

PPAP :

No

Number of Positions :

5

Nominal current - rounded value :

12A

Coil Resistance :

- Ohm

Header Orientation :

90°, Right Angle

Mounting Type :

PCB Mount

Min. temperature :

-60°C

Coil Voltage :

24VDC

Number of Levels :

1

Contact Form :

DPDT

Manufacturer part # :

232-335

Industrial packaging :

yes

Torque - Screw :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Dim :

(L x W x H) 17 x 28.2 x 31 mm

Termination Method :

Solder

Series :

301

No. of rows :

1

Contact Material :

AgNi

EU RoHS :

Compliant

Positions Per Level :

5

Content :

100pc(s)

Maximum Voltage Rating :

300V

Plug Wire Entry :

-

Screw Size :

-

Pin Length :

5 MilliMeters

Wire Gauge or Range - mm² :

-

Max. temperature :

+100°C

Height :

31mm

Contact Tail Length :

0.197 (5.00mm)

Color :

Gray

ECCN (US) :

EAR99

Automotive :

No

Gender :

HDR

CS :

5mm

Length :

17mm

Features :

Retention Latches

Note :

-

Manufacturer :

Wago

Approvals :

CSA;UL

Nominal voltage :

320V

Wire Strip Length :

-

Current - IEC :

12A

Contact Mating Finish :

Tin
