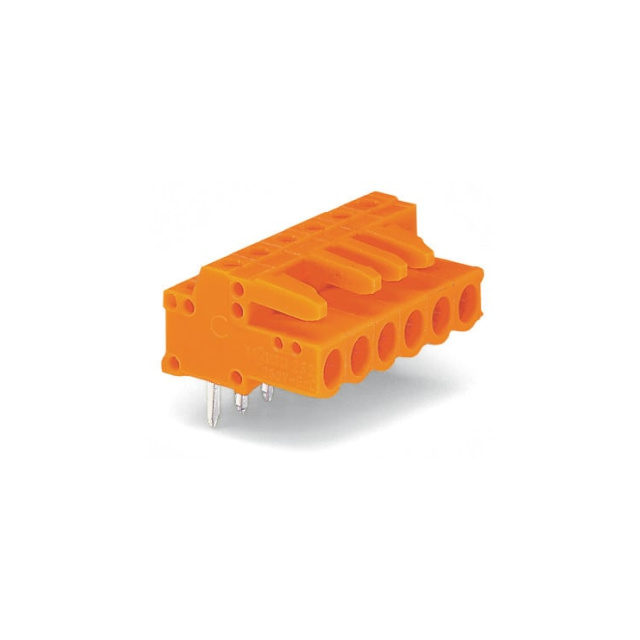

232-283

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Contact Mating Finish :

Tin

Material Flammability Rating :

UL94 V-0

Board contact surface :

Tin plated

Approvals :

CB, UR

Nominal voltage :

320V

Number of Levels :

1

EU RoHS :

Compliant

Wire Gauge or Range - AWG :

-

Content :

10pc(s)

Wire Strip Length :

-

Over voltage category :

III

Material of contact surface :

Tin

Current - IEC :

12A

CS :

5.08mm

Torque - Screw :

-

Header Orientation :

90°, Right Angle

Connection :

Print

Features :

Retention Latches (Non-Wire Side)

Insulation Height :

0.457 (11.60mm)

Plug Wire Entry :

-

ECCN (US) :

EAR99

Operating Temperature :

-60°C ~ 85°C

Pitch :

0.200 (5.08mm)

Manufacturer part # :

232-283

Voltage - UL :

600 V

Type of fastening :

Solder

Packaging type :

Carton (box)

Industrial packaging :

yes

Package :

Box

Ingress Protection :

-

Housing Material :

Polyamide (PA66), Nylon 6/6

Number of Contacts :

23 Pole

Automotive :

No

No. of rows :

1

Screw Size :

-

Pollution degree :

2

Pins per row :

23

Rated current In :

12

Current :

15 A

Width :

118.34mm

Type :

232-283

Series :

232

Current - UL :

15 A

Manufacturer :

Wago

Temperature :

-60-85 °C

Rated surge voltage :

4

Length :

16.60mm

Color :

Orange

Depth :

18.25mm

Connector contact surface :

Tin plated

Wire Gauge or Range - mm² :

-

Contact Tail Length :

0.197 (5.00mm)

Height :

18.25mm

Inflammability class of insulation material according to with UL94 :

V0

Positions Per Level :

23

Dim :

(L x W x H) 16.60 x 118.34 x 18.25 mm

Mounting Type :

Through Hole

Total number of pins :

23

Contact Finish :

Tin

Voltage :

300 V

Product Status :

Active

PPAP :

No

Voltage - IEC :

630 V

Termination Style :

Solder

Number of Positions :

23

Contact Material :

COPPER ALLOY

Type of electric connection :

Soldering connection
