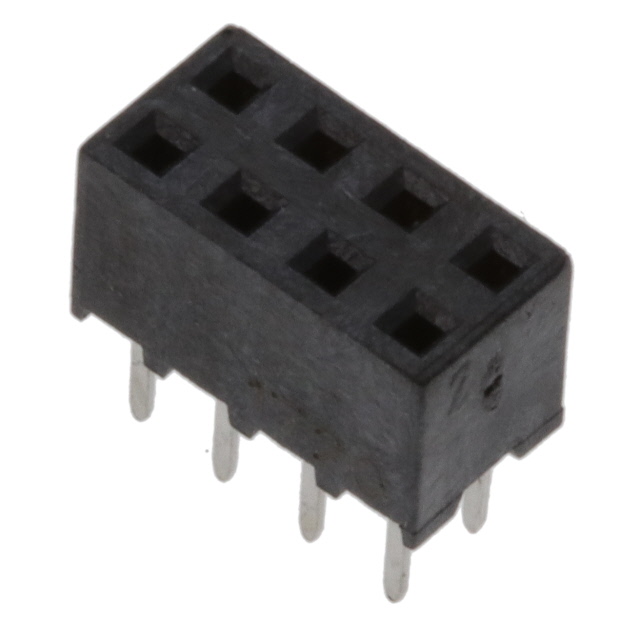

2314822-8
Or copy the link below:
- Mfr.Part #
- 2314822-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 8P,2MM,B-B,REC,DRVT,2.7,0.76AU,T
- Stock
- 849
- In Stock ：
- 849
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Subcategory :
- Board to Board and Mezzanine Connectors
- Flammability Rating :
- UL 94 V-0
- Mounting Type :
- Through Hole
- Voltage Rating :
- 125 V , 650 V
- Maximum Operating Temperature :
- + 125 C
- Minimum Operating Temperature :
- - 40 C
- Number of Contact Rows :
- 2
- Base/Housing Material :
- LCP (Liquid Crystal Polymer)
- Product Category :
- Board to Board and Mezzanine Connectors
- Product Length :
- 8 mm
- Pitch (mm) :
- 2(mm)
- Mounting Style :
- Through Hole
- Mounting :
- Through Hole
- Series :
- AMPMODU
- Contact Material :
- Phosphor Bronze
- Voltage Rating Max :
- 125VAC
- Termination Method :
- Solder
- Housing Color :
- Black
- Product Type :
- Board to Board and Mezzanine Connectors
- Contact Resistance Max :
- 30(mohm)
- Termination Style :
- Solder
- Number of Positions :
- 8 Position
- Operating Temp Range :
- -40C to 125C
- Pitch :
- 2 mm
- Current Rating (Max) :
- 2/Contact(A)
- Contact Plating :
- Gold Over Nickel
- Type :
- Socket Strip
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Operating Temperature :
- -40 to 125 °C
- Mounting Angle :
- Vertical
- Number of Rows :
- 2
- Product Length (mm) :
- 8(mm)
- Manufacturer :
- TE Connectivity
- RoHS :
- Details
- Gender :
- SKT
- Termination Post Length :
- 2.7 mm
- Product Depth (mm) :
- 4.1(mm)
- Number of Contacts :
- 8(POS)
- Current Rating :
- 12A
- Product Height (mm) :
- 4.5(mm)
- Brand :
- TE Connectivity
- Packaging :
- Tube
- Product :
- Receptacles
- Body Orientation :
- Straight
- Datasheets
- 2314822-8
AMPMODU Series 2-Row Phosphor Bronze Tube Through Hole 8 Position-Position
2314822-8 Overview
The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the AMPMODU Series of products.The device runs in -40 to 125 °C Operating Temperature.
2314822-8 Features
AMPMODU series
2314822-8 Applications
There are a lot of TE Connectivity
2314822-8 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
