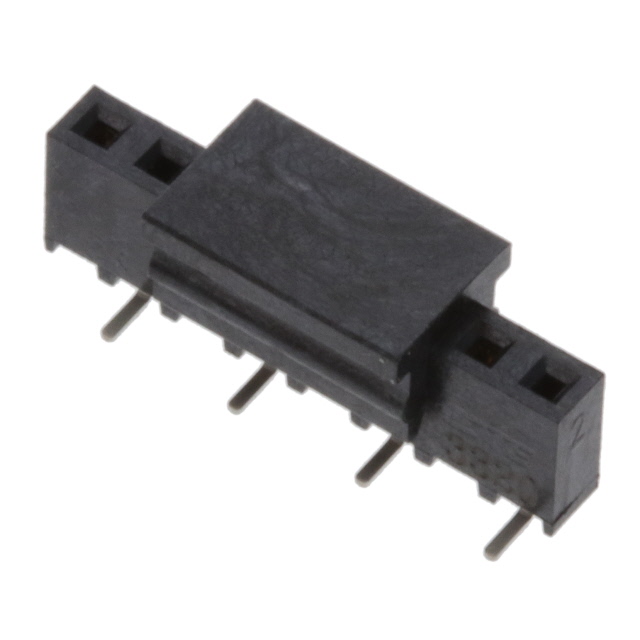

2307815-8
Or copy the link below:
- Mfr.Part #
- 2307815-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 8P,2MM,BB,REC,SRVT,SMD,AU.76,TR,
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Voltage - Rated :
- 125V
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Rows :
- 1
- Pitch - Mating :
- 0.079 2.00mm
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Insulation Color :
- Black
- Series :
- AMPMODU
- Contact Finish - Post :
- Tin
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Mounting Type :
- Surface Mount
- Packaging :
- Tape and Reel (TR)
- Operating Temperature :
- -40°C~125°C
- Style :
- Board to Board
- Feature :
- Pick and Place
- Number of Positions :
- 8
- Insulation Height :
- 0.177 4.50mm
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 14 Weeks
- Contact Type :
- Female Socket
- Current Rating (Amps) :
- 2A
- Fastening Type :
- Push-Pull
- Termination :
- Solder
- Connector Type :
- Receptacle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 2307815-8
1 Rows Receptacle Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Gold Liquid Crystal Polymer (LCP) 8 Positions Female Socket
2307815-8 Overview
The product is packaged in Receptacle.This device is mounted in the Surface Mount position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the AMPMODU Series.There are a number of advantages to its Pick and Place feature.As a result, the device runs at -40°C~125°C Operating Temperature.
2307815-8 Features
AMPMODU series
2307815-8 Applications
There are a lot of TE Connectivity AMP Connectors
2307815-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
