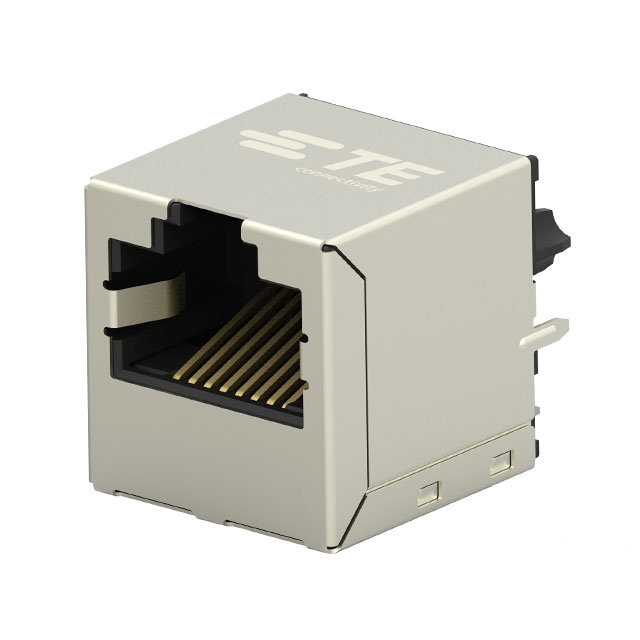

2301995-1
Or copy the link below:
- Mfr.Part #
- 2301995-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK 1PORT 100 BASE-T PCB
- Stock
- 464
- In Stock ：
- 464
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks With Magnetics
- Element Configuration :
- Single
- Number of Positions Loaded :
- 8
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Housing Color :
- Black
- Operating Temperature :
- -40°C~85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Flammability Rating :
- UL94 V-0
- Number of Cores per Jack :
- 4
- Contact Finish Thickness :
- 30.0μin 0.76μm
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 18 Weeks
- LED Color :
- Does Not Contain LED
- Mounting Type :
- Through Hole
- Published :
- 2017
- Number of Ports :
- 1
- Termination :
- Solder
- Shield Material :
- Brass
- Packaging :
- Tape and Reel (TR)
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Keyed :
- No
- Data Rate :
- 1 Gbps
- Height :
- 16.89mm
- Tab Direction :
- UP
- Contact Finish Thickness - Mating :
- 760 nm
- PCB Mounting Orientation :
- Vertical
- Contact Plating :
- Gold, Nickel
- Orientation :
- 90° Angle (Right)
- Feature :
- Board Lock
- Contact Finish :
- Gold
- Contact Material :
- COPPER ALLOY
- Connector Type :
- RJ45
- Shielding :
- Shielded
- Height Above Board :
- 0.665 16.90mm
- Applications :
- 10/100 Base-T, AutoMDIX
- Insulation Material :
- LIQUID CRYSTAL POLYMER
- Datasheets
- 2301995-1
