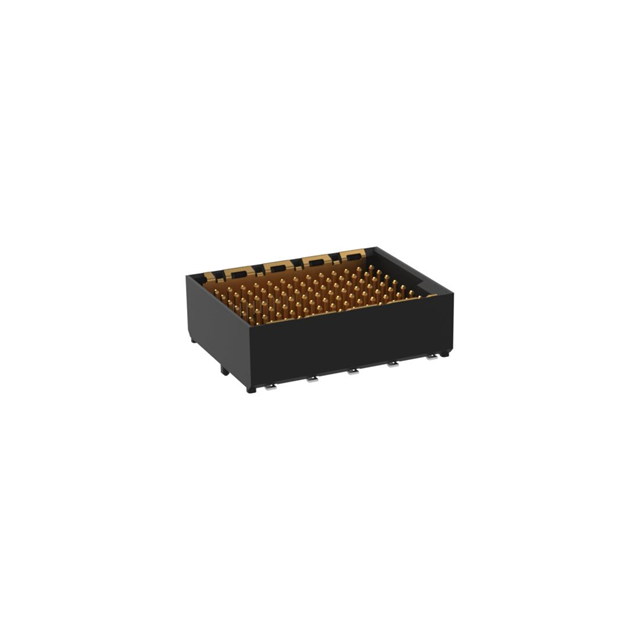

224212

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Termination Type :

Surface Mount

Dielectric Withstanding Voltage :

700VAC V

Mounting Style :

Straight

Subcategory :

Headers and Edge Type Connectors

Reliability :

COMMERCIAL

Insertion Force-Max :

.5004 N

Body/Shell Style :

Receptacle

PCB Contact Pattern :

RECTANGULAR

Reach Compliance Code :

Compliant

ECCN Code :

EAR99

IEC Conformance :

No

Pbfree Code :

yes

Mixed Contacts :

No

HTS Code :

8536.69.40.40

Filter Feature :

No

JESD-609 Code :

e3

Number Of PCB Rows :

7

Manufacturer :

ERNI

Contact Resistance :

25 mΩ

Additional Feature :

RoHS Compliant

Insulation Resistance :

10000000000 Ω

Contact Gender :

Male

Body Depth :

0.189 inch

Mating Contact Row Spacing :

0.049 inch

Connector Type :

BOARD CONNECTOR

Mounting Option 1 :

LOCKING

Contact Finish Termination :

Tin (Sn)

DIN Conformance :

No

Option :

GENERAL PURPOSE

Mating Contact Pitch :

0.039 inch

PCB Contact Row Spacing :

1.2446 mm

Board Mounting Option :

PEG

Total Number of Contacts :

91

Contact Style :

SQ PIN-SKT

Terminal Pitch :

1 mm

Reference Standard :

UL

Contact Pattern :

RECTANGULAR

Rated Current (Signal) :

1 A

Durability :

500 Cycles

MIL Conformance :

No

Contact Material :

NOT SPECIFIED

Mounting Type :

BOARD

Polarization Key :

POLARIZED HOUSING

Body Breadth :

0.459 inch
