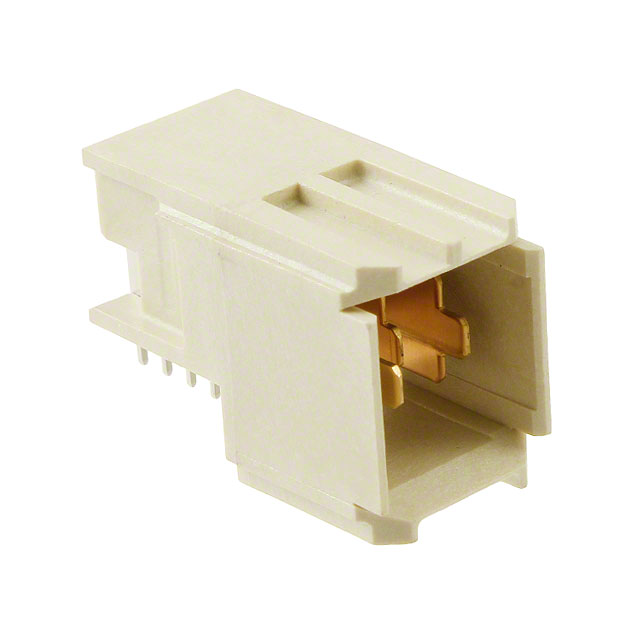

223971-1
Or copy the link below:
- Mfr.Part #
- 223971-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER BLADE PWR 3P EDGE MT
- Stock
- 39,731
- In Stock ：
- 39,731
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Signal Positions :
- 0
- Number of Contacts :
- 3
- Sealable :
- No
- Number of Ports :
- 1
- Factory Lead Time :
- 24 Weeks
- Row Spacing :
- 0 m
- Flammability Rating :
- UL94 V-0
- Series :
- UPM (Universal Power Modules)
- Housing Color :
- Natural
- Termination :
- Press-Fit
- Current Rating :
- 10A
- ELV :
- Non-Compliant
- Contact Layout, Typical :
- 3 Power
- Material Flammability Rating :
- UL94 V-0
- Number of Power Positions :
- 3
- Min Operating Temperature :
- -55°C
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Rows :
- 1
- Lead Pitch :
- 2.54mm
- Number of Terminations :
- 12
- Feature :
- Board Guide
- Contact Finish :
- Gold
- Packaging :
- Tube
- Orientation :
- RIGHT ANGLE
- Published :
- 2005
- Number of Positions Loaded :
- All
- RoHS Status :
- Non-RoHS Compliant
- Color :
- Gray
- Contact Material :
- Bronze
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Lead Free :
- Not Applicable
- Connector Style :
- Blade Power
- Radiation Hardening :
- No
- Number of Positions :
- 3
- Mount :
- Through Hole
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Lead, Metal, Tin
- Max Operating Temperature :
- 125°C
- Pitch :
- 2.9972mm
- PCB Thickness :
- 1.57mm
- Housing Material :
- Polyester
- Contact Retention :
- With
- Gender :
- Male
- Connector Type :
- Header, Male Blades
- Wire/Cable Gauge :
- 14 AWG
- Operating Supply Voltage :
- 250V
- Insulation Diameter :
- 3.0988 mm
- Circuit Application :
- Power
- Contact Current Rating :
- 10A
- Datasheets
- 223971-1
