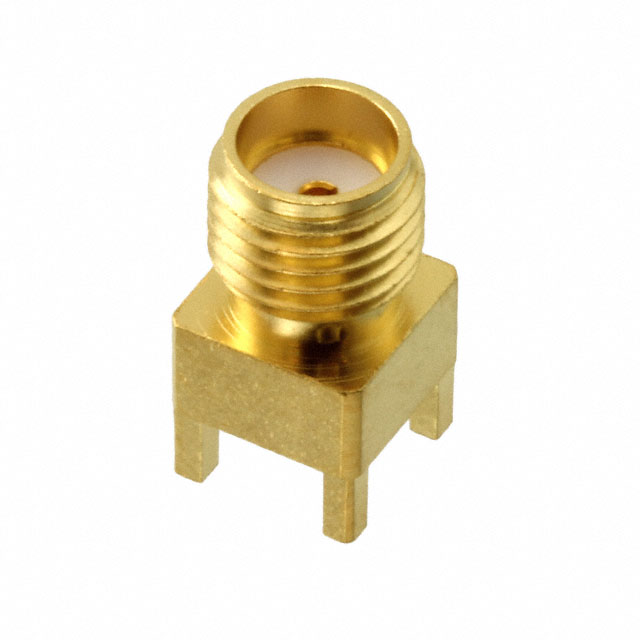

221789-3
Or copy the link below:
- Mfr.Part #
- 221789-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SMA JACK STR 50 OHM PCB
- Stock
- 42,538
- In Stock ：
- 42,538
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Coaxial Connector (RF) Assemblies
- ELV :
- Compliant
- Option :
- GENERAL PURPOSE
- Published :
- 2005
- Connector Type :
- Jack, Female Socket
- Contact Termination :
- Solder
- Connector Style :
- SMA
- Filter Feature :
- No
- Number of Ports :
- 1
- Contact Style :
- COAX
- Center Contact Material :
- BERYLLIUM COPPER
- Insulation Material :
- Polytetrafluoroethylene
- Lead Free :
- Lead Free
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- IEC Conformance :
- No
- VSWR :
- 1.3
- Gender :
- Male
- Frequency :
- 4GHz
- RoHS Status :
- RoHS Compliant
- Mating Cycles :
- 500
- Length :
- 12.2mm
- Polarity :
- Standard
- Voltage - Rated :
- 335V
- Insertion Loss :
- 0.3dB
- Total Number of Contacts :
- 1
- Fastening Type :
- Threaded
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Reliability :
- COMMERCIAL
- REACH SVHC :
- Unknown
- Body Material :
- Brass
- Contact Resistance :
- 2MOhm
- Radiation Hardening :
- No
- Depth :
- 6.35mm
- Center Contact Plating :
- Gold
- Mount :
- Through Hole
- Orientation :
- Vertical
- JESD-609 Code :
- e4
- Operating Temperature :
- -65°C~165°C
- MIL Conformance :
- No
- Packaging :
- Bulk
- Contact Material :
- Copper
- Impedance :
- 50Ohm
- DIN Conformance :
- No
- ECCN Code :
- EAR99
- Insulation Resistance :
- 5GOhm
- Datasheets
- 221789-3
221789-3 Documents
Jack, Female Socket Threaded 50Ohm Bulk SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
221789-3 Overview
A Jack, Female Socket package is included with it.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.With 1 ports, it is capable of managing a wide range of tasks.By Through Hole, the part is mounted.Operating temperature is set to -65°C~165°C.An effective performance can be achieved at a frequency of 4GHz.
221789-3 Features
221789-3 Applications
There are a lot of TE Connectivity AMP Connectors
221789-3 Coaxial Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
