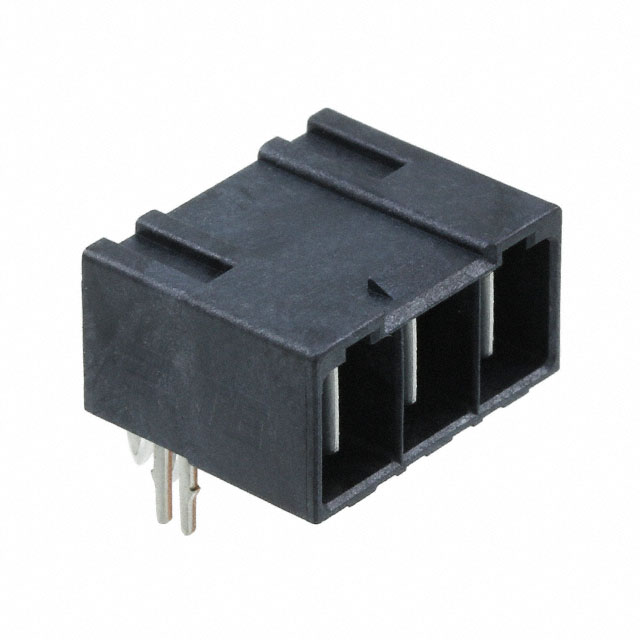

2204581-2
Or copy the link below:
- Mfr.Part #
- 2204581-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 3POS PCB
- Stock
- 556
- In Stock ：
- 556
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Power Positions :
- 3
- Number of Columns :
- 1
- Housing Color :
- Black
- Row Spacing :
- 5.6896 mm
- Contact Plating :
- Silver
- Contact Current Rating :
- 35A
- Sealable :
- No
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 13 Weeks
- Plating :
- Silver
- Color :
- Black
- Series :
- Elcon Mini
- Termination :
- Press-Fit
- Operating Supply Voltage :
- 400V
- Current Rating :
- 35A
- Number of Positions Loaded :
- All
- Pitch :
- 5.7mm
- Number of Contacts :
- 3
- Mounting Type :
- Through Hole, Right Angle
- Orientation :
- Horizontal
- Contact Layout, Typical :
- 3 Power
- Number of Rows :
- 1
- Plating Thickness :
- 3µm
- Packaging :
- Tape and Reel (TR)
- Contact Retention :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Max Operating Temperature :
- 221°C
- Number of Signal Positions :
- 0
- Min Operating Temperature :
- -40°C
- Circuit Application :
- Power
- Number of Positions :
- 3
- Connector Type :
- Header, Male Blades
- Contact Finish :
- Silver
- Published :
- 2016
- Operating Temperature :
- -40°C~105°C
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polymer
- Contact Finish Thickness :
- 3.00μin 0.076μm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Material Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- RIGHT ANGLE
- Datasheets
- 2204581-2
Elcon Mini Series Header, Male Blades Press-Fit Silver Black 3.00μin 0.076μm 3 Positions Pitch: 5.7mm -40°C~105°C Tape & Reel (TR) Through Hole, Right Angle
2204581-2 Overview
The packaging contains Header, Male Blades.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Elcon Mini belongs to the Elcon Mini Series.Whenever the temperature is below 221°C, it's best.There is a minimum temperature requirement of [0°C] for this device.This device operates at a temperature of -40°C~105°C.When the supply voltage is set to 400V, this Backplane Connector will work.
2204581-2 Features
Elcon Mini series
2204581-2 Applications
There are a lot of TE Connectivity AMP Connectors
2204581-2 Backplane Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
