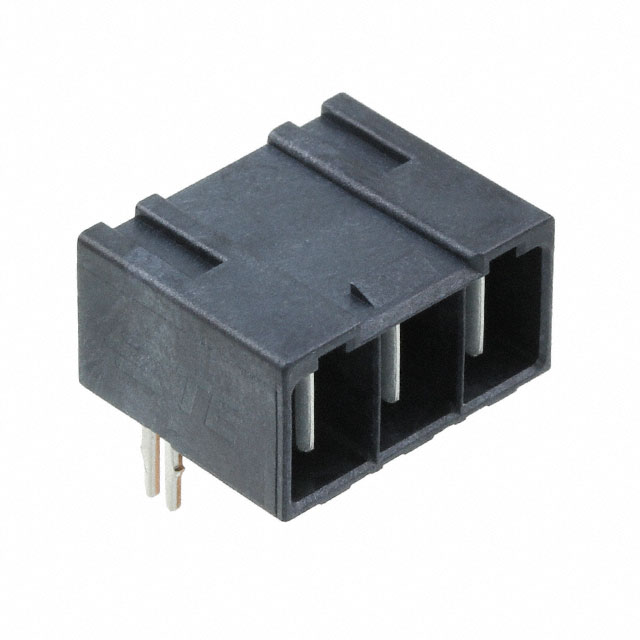

2204529-2
Or copy the link below:
- Mfr.Part #
- 2204529-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 3POS PCB
- Stock
- 11,031
- In Stock ：
- 11,031
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Signal Positions :
- 0
- Circuit Application :
- Power
- Plating :
- Silver
- Sealable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polymer
- Feature :
- Board Lock
- Operating Supply Voltage :
- 400V
- Row Spacing :
- 5.6896 mm
- Published :
- 2016
- Current Rating :
- 35A
- Max Operating Temperature :
- 221°C
- Factory Lead Time :
- 13 Weeks
- Packaging :
- Tape and Reel (TR)
- Orientation :
- Horizontal
- Series :
- Elcon Mini
- Number of Contacts :
- 3
- Contact Layout, Typical :
- 3 Power
- Pitch :
- 5.7mm
- Color :
- Black
- Termination :
- Solder
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole, Right Angle
- Housing Color :
- Black
- Contact Current Rating :
- 35A
- Contact Retention :
- With
- Number of Rows :
- 1
- Contact Plating :
- Silver
- Connector Type :
- Header, Male Blades
- Number of Power Positions :
- 3
- Number of Positions :
- 3
- Material Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -40°C
- PCB Mounting Orientation :
- RIGHT ANGLE
- Plating Thickness :
- 3µm
- Flammability Rating :
- UL94 V-0
- Datasheets
- 2204529-2
Elcon Mini Series Header, Male Blades Solder Black 3 Positions Pitch: 5.7mm Tape & Reel (TR) Through Hole, Right Angle
2204529-2 Overview
The product is packaged in Header, Male Blades.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the Elcon Mini Series.When the temperature is below 221°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.There are a number of advantages to its Board Lock feature.A supply voltage of 400V is required to operate this Backplane Connector.
2204529-2 Features
Elcon Mini series
2204529-2 Applications
There are a lot of TE Connectivity AMP Connectors
2204529-2 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
