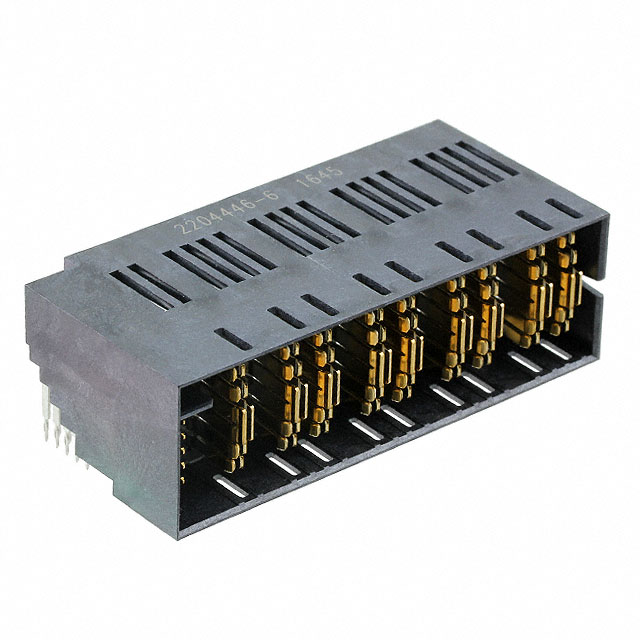

2204446-6
Or copy the link below:
- Mfr.Part #
- 2204446-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG MULTI-BEAM 19P EDGE MT
- Stock
- 34,307
- In Stock ：
- 34,307
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Max Operating Temperature :
- 125°C
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Rows :
- 5
- Contact Plating :
- Metal, Tin
- Number of Power Positions :
- 9
- Housing Color :
- Black
- Sealable :
- No
- Color :
- Black
- Housing Material :
- Thermoplastic
- Orientation :
- RIGHT ANGLE
- Packaging :
- Tray
- Number of Positions Loaded :
- All
- Operating Temperature :
- -40°C~125°C
- Row Spacing :
- 2 mm
- Contact Layout, Typical :
- 10 Signal, 9 Power
- Material Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 19
- Circuit Application :
- Power
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Connector Type :
- Plug, Male Pins and Blades
- Termination :
- Press-Fit
- PCB Mounting Orientation :
- RIGHT ANGLE
- Series :
- MULTI-BEAM HD
- Published :
- 2015
- Flammability Rating :
- UL94 V-0
- Feature :
- Board Guide
- Number of Positions :
- 19
- Number of Signal Positions :
- 10
- Operating Supply Voltage :
- 300V
- Factory Lead Time :
- 11 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Plating Thickness :
- 76 nm
- RoHS Status :
- RoHS Compliant
- Pitch :
- 3.9878mm
- Contact Finish :
- Gold or Gold-Palladium
- Connector Style :
- Multi-Beam
- Contact Retention :
- Without
- Min Operating Temperature :
- -40°C
- Datasheets
- 2204446-6
MULTI-BEAM HD Series Plug, Male Pins and Blades Press-Fit Gold or Gold-Palladium Black 19 Positions Pitch: 3.9878mm -40°C~125°C Tray Board Edge, Through Hole, Right Angle
2204446-6 Overview
The product is packaged in Plug, Male Pins and Blades.This device is mounted in the Board Edge, Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There is a product in the MULTI-BEAM HD Series.When the temperature is below 125°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.There are a number of advantages to its Board Guide feature.As a result, the device runs at -40°C~125°C Operating Temperature.A supply voltage of 300V is required to operate this Backplane Connector.
2204446-6 Features
MULTI-BEAM HD series
2204446-6 Applications
There are a lot of TE Connectivity AMP Connectors
2204446-6 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
