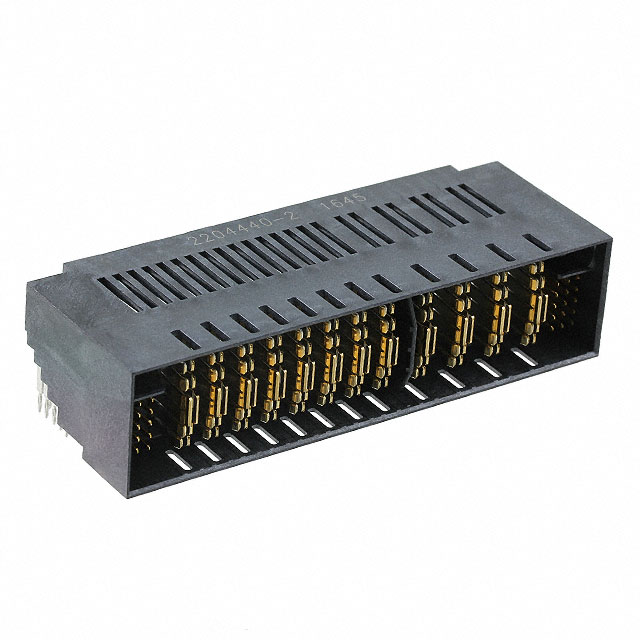

2204440-2
Or copy the link below:
- Mfr.Part #
- 2204440-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG MULTI-BEAM 42P EDGE MT
- Stock
- 46,683
- In Stock ：
- 46,683
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Layout, Typical :
- 30 Signal, 12 Power
- PCB Mounting Orientation :
- RIGHT ANGLE
- Packaging :
- Tray
- Number of Signal Positions :
- 30
- Number of Positions :
- 42
- Operating Supply Voltage :
- 60V
- Number of Positions Loaded :
- All
- Plating Thickness :
- 76 nm
- Current Rating :
- 1.116kA
- Housing Color :
- Black
- Contact Retention :
- Without
- Circuit Application :
- Power
- Color :
- Black
- Number of Contacts :
- 42
- Number of Power Positions :
- 12
- Operating Temperature :
- -40°C~125°C
- Published :
- 2015
- Connector Style :
- Multi-Beam
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 5
- Sealable :
- No
- Row Spacing :
- 2 mm
- Termination :
- Press-Fit
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Connector Type :
- Plug, Male Pins and Blades
- Min Operating Temperature :
- -40°C
- Factory Lead Time :
- 11 Weeks
- Contact Plating :
- Metal, Tin
- Pitch :
- 5mm
- Contact Finish :
- Gold or Gold-Palladium
- Series :
- MULTI-BEAM HD
- Housing Material :
- Thermoplastic
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Orientation :
- RIGHT ANGLE
- Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 125°C
- RoHS Status :
- RoHS Compliant
- Feature :
- Board Guide
- Datasheets
- 2204440-2
MULTI-BEAM HD Series Plug, Male Pins and Blades Press-Fit Gold or Gold-Palladium Black 42 Positions Pitch: 5mm -40°C~125°C Tray Board Edge, Through Hole, Right Angle
2204440-2 Overview
Packaging for this item is Plug, Male Pins and Blades.There is a mounting type of Board Edge, Through Hole, Right Angle for this device.It is necessary to use a Tray case for packaging the product.This product is part of the MULTI-BEAM HD Series.You should use it when it's below 125°C.A minimum temperature of -40°C is required for the operation of this device.In many ways, its Board Guide feature makes it more powerful.In this case, the device operates at -40°C~125°C Operating Temperature.This Backplane Connector can be used with a supply voltage of 60V.
2204440-2 Features
MULTI-BEAM HD series
2204440-2 Applications
There are a lot of TE Connectivity AMP Connectors
2204440-2 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
