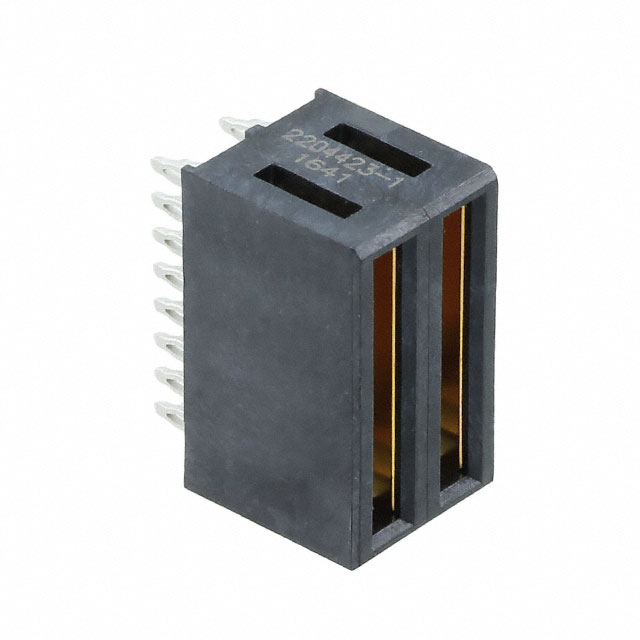

2204423-1
Or copy the link below:
- Mfr.Part #
- 2204423-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MULTI-BEAM 2POS PCB
- Stock
- 1,222
- In Stock ：
- 1,222
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Gender :
- Receptacle
- Mount :
- Through Hole
- Length :
- 18.3mm
- Pitch :
- 5mm
- Max Operating Temperature :
- 125°C
- Circuit Application :
- Power
- Operating Supply Voltage :
- 60V
- Mounting Type :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -40°C~125°C
- Sealable :
- No
- Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -40°C
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Pins :
- 2
- Factory Lead Time :
- 15 Weeks
- Contact Plating :
- Metal, Tin
- Termination :
- Press-Fit
- Connector Type :
- Receptacle, Female Blade Sockets
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Current Rating :
- 42A
- Contact Retention :
- With
- Contact Layout, Typical :
- 2 Power
- Connector Style :
- Multi-Beam
- Material Flammability Rating :
- UL94 V-0
- Series :
- MULTI-BEAM HD
- Packaging :
- Tray
- Number of Power Positions :
- 2
- Number of Rows :
- 1
- Plating Thickness :
- 1.27μm
- Number of Positions Loaded :
- All
- Housing Color :
- Black
- Contact Finish :
- Gold or Gold-Palladium
- Number of Contacts :
- 2
- Number of Positions :
- 2
- Color :
- Black
- Housing Material :
- Thermoplastic
- Published :
- 2015
- Orientation :
- Straight
- PCB Mounting Orientation :
- Vertical
- Datasheets
- 2204423-1
MULTI-BEAM HD Series Receptacle, Female Blade Sockets Press-Fit Gold or Gold-Palladium Black 2 Positions Pitch: 5mm -40°C~125°C Tray Through Hole
2204423-1 Overview
It comes in Receptacle, Female Blade Sockets packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the MULTI-BEAM HD Series of products.The device is equipped with 2 pins.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -40°C.The part is mounted by Through Hole.The device runs in -40°C~125°C Operating Temperature.With a supply voltage of 60V, this Backplane Connector works.
2204423-1 Features
MULTI-BEAM HD series
2204423-1 Applications
There are a lot of TE Connectivity AMP Connectors
2204423-1 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
