2204422-3
Or copy the link below:
- Mfr.Part #
- 2204422-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MULTI-BEAM 38POS PCB
- Stock
- 94
- In Stock ：
- 94
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Positions :
- 38
- Pitch :
- 5mm
- Number of Signal Positions :
- 30
- Number of Contacts :
- 38
- Housing Color :
- Black
- Mounting Type :
- Through Hole
- Color :
- Black
- Number of Positions Loaded :
- All
- Contact Retention :
- Without
- Packaging :
- Tray
- Sealable :
- No
- Factory Lead Time :
- 11 Weeks
- Max Operating Temperature :
- 125°C
- Plating Thickness :
- 76 nm
- Published :
- 2015
- Operating Temperature :
- -40°C~125°C
- Flammability Rating :
- UL94 V-0
- Connector Style :
- Multi-Beam
- Series :
- MULTI-BEAM HD
- Material Flammability Rating :
- UL94 V-0
- Gender :
- Receptacle
- Current Rating :
- 75A
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Row Spacing :
- 2.0066 mm
- PCB Mounting Orientation :
- Vertical
- Contact Layout, Typical :
- 30 Signal, 8 Power
- Contact Plating :
- Metal, Tin
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Power Positions :
- 8
- Contact Finish :
- Gold or Gold-Palladium
- Operating Supply Voltage :
- 60V
- Feature :
- Board Guide
- Termination :
- Press-Fit
- Housing Material :
- Thermoplastic
- Circuit Application :
- Power
- Min Operating Temperature :
- -40°C
- Orientation :
- Vertical
- Number of Rows :
- 5
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- Datasheets

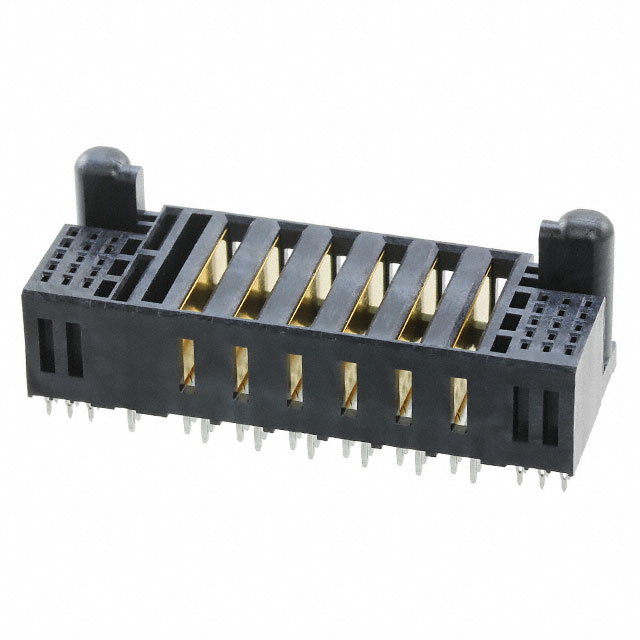

- 2204422-3
MULTI-BEAM HD Series Receptacle, Female Sockets and Blade Sockets Press-Fit Gold or Gold-Palladium Black 38 Positions Pitch: 5mm -40°C~125°C Tray Through Hole
2204422-3 Overview
Packaging is in the form of Receptacle, Female Sockets and Blade Sockets.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the MULTI-BEAM HD Series.If the temperature is below 125°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Board Guide feature.Devices operate at -40°C~125°C operating temperatures.A supply voltage of 60V is necessary for this Backplane Connector to work.
