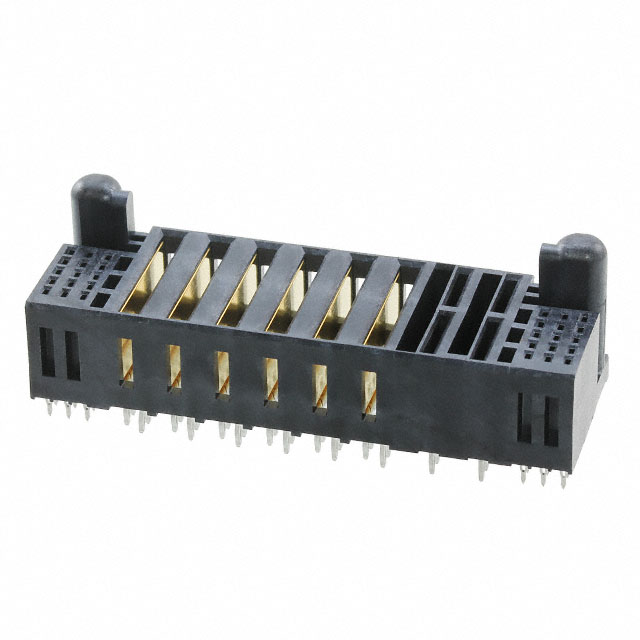

2204422-2
Or copy the link below:
- Mfr.Part #
- 2204422-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MULTI-BEAM 40POS PCB
- Stock
- 31,251
- In Stock ：
- 31,251
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Material Flammability Rating :
- UL94 V-0
- Series :
- MULTI-BEAM HD
- Termination :
- Press-Fit
- Pitch :
- 5mm
- Packaging :
- Tray
- Orientation :
- Vertical
- Factory Lead Time :
- 11 Weeks
- Housing Color :
- Black
- Number of Power Positions :
- 10
- Sealable :
- No
- Plating Thickness :
- 76 nm
- Gender :
- Receptacle
- Mounting Type :
- Through Hole
- Feature :
- Board Guide
- Row Spacing :
- 2.0066 mm
- Published :
- 2016
- PCB Mounting Orientation :
- Vertical
- Number of Positions :
- 40
- Current Rating :
- 75A
- Contact Finish :
- Gold or Gold-Palladium
- Number of Positions Loaded :
- All
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Min Operating Temperature :
- -40°C
- Number of Signal Positions :
- 30
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Operating Temperature :
- -40°C~125°C
- Contact Retention :
- Without
- Circuit Application :
- Power
- Max Operating Temperature :
- 125°C
- Number of Rows :
- 5
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- Connector Style :
- Multi-Beam
- Operating Supply Voltage :
- 60V
- Number of Contacts :
- 40
- Contact Plating :
- Metal, Tin
- Housing Material :
- Thermoplastic
- Color :
- Black
- Contact Layout, Typical :
- 30 Signal, 10 Power
- Datasheets
- 2204422-2
MULTI-BEAM HD Series Receptacle, Female Sockets and Blade Sockets Press-Fit Gold or Gold-Palladium Black 40 Positions Pitch: 5mm -40°C~125°C Tray Through Hole
2204422-2 Overview
A Receptacle, Female Sockets and Blade Sockets package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the MULTI-BEAM HD Series of products.Whenever it's below 125°C, it's best to use it.The device must operate at a temperature of -40°C at all times.A number of features make it more powerful because of its Board Guide feature.There is no operating temperature for the device.This Backplane Connector operates with a supply voltage of 60V.
2204422-2 Features
MULTI-BEAM HD series
2204422-2 Applications
There are a lot of TE Connectivity AMP Connectors
2204422-2 Backplane Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
