2204420-8
Or copy the link below:
- Mfr.Part #
- 2204420-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description

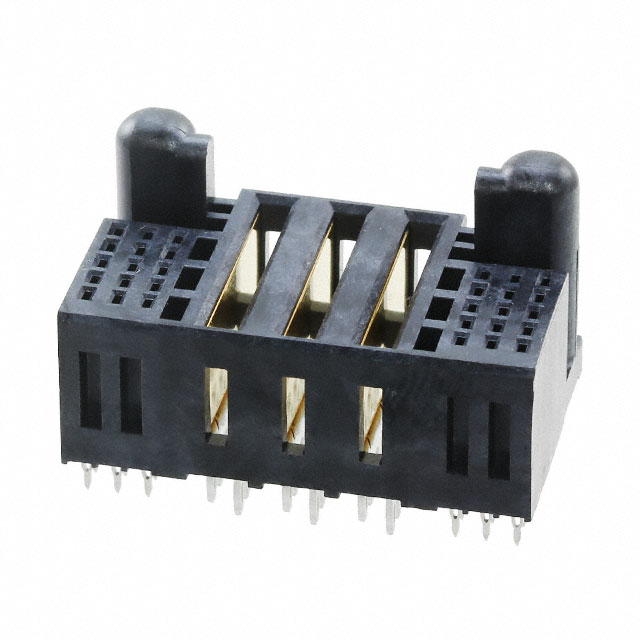

- CONN RCPT MULTI-BEAM 30POS PCB
- Stock
- 159
- In Stock ：
- 159
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Factory Lead Time :
- 11 Weeks
- Max Operating Temperature :
- 125°C
- Operating Temperature :
- -40°C~125°C
- Contact Layout, Typical :
- 27 Signal, 3 Power
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 30
- Circuit Application :
- Power
- Termination :
- Press-Fit
- Series :
- MULTI-BEAM HD
- Material Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 30
- Contact Finish Thickness :
- 3.00μin 0.076μm
- Housing Color :
- Black
- Published :
- 2015
- Number of Rows :
- 5
- Contact Plating :
- Metal, Tin
- Gender :
- Receptacle
- Packaging :
- Tray
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Current Rating :
- 27A
- Operating Supply Voltage :
- 60V
- Number of Positions Loaded :
- All
- PCB Mounting Orientation :
- Vertical
- Color :
- Black
- Contact Finish :
- Gold or Gold-Palladium
- Contact Retention :
- With
- Mounting Type :
- Through Hole
- Row Spacing :
- 2.0066 mm
- Pitch :
- 5mm
- Plating Thickness :
- 76 nm
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- Number of Power Positions :
- 3
- Feature :
- Board Guide, Guide Pin
- Connector Style :
- Multi-Beam
- Housing Material :
- Thermoplastic
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Orientation :
- Vertical
- Number of Signal Positions :
- 27
- Min Operating Temperature :
- -40°C
- Datasheets
- 2204420-8
MULTI-BEAM HD Series Receptacle, Female Sockets and Blade Sockets Press-Fit Gold or Gold-Palladium Black 3.00μin 0.076μm 30 Positions Pitch: 5mm -40°C~125°C Tray Through Hole
2204420-8 Overview
The product comes in a package of Receptacle, Female Sockets and Blade Sockets.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the MULTI-BEAM HD Series.Use it when the temperature is below 125°C.Temperatures below -40°C are required for this device to operate.It is more powerful in many ways due to its Board Guide, Guide Pin feature.It operates at an operating temperature of -40°C~125°C.As long as the supply voltage is 60V, this Backplane Connector is functional.
