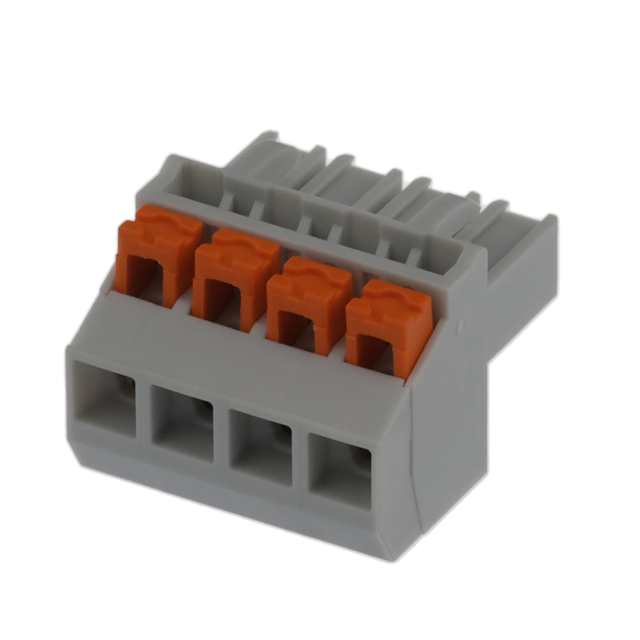

2202344

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Header Orientation :

-

Wire Gauge or Range - mm² :

0.2-2.5mm²

Connection Method :

Push-In

Package :

Bulk

Screw Size :

-

Length :

21.3 mm

Plug Wire Entry :

180°

Ingress Protection :

-

Product Category :

Fixed Terminal Blocks

Voltage Rating :

300 V

Contact Mating Finish :

Tin

Current - IEC :

16A

Contact Tail Length :

-

Current - UL :

15 A

Series :

5/ 4-ST KMGY, PSPT 2

Mounting Type :

Through Hole

Wire Gauge or Range - AWG :

14-24 AWG

RoHS :

Details

Product Type :

Fixed Terminal Blocks

Current Rating :

16 A

Product :

Fixed Terminal Blocks

Voltage - IEC :

300 V

Gender :

FEMALE

Operating Temperature :

-40°C ~ 105°C

Type :

Plug, Female Sockets

Height :

15 mm

Number of Levels :

1

Housing Material :

Polyamide (PA), Nylon

Contact Plating :

Tin

Torque - Screw :

-

Insulation Height :

0.591 (15.00mm)

Reach Compliance Code :

Compliant

Rated Current :

16A

Brand :

Phoenix Contact

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Number of Rows :

1

Number of Positions :

4 Position

Color :

Gray

Features :

Lever Actuated, Retention Latches (Non-Wire Side)

Positions Per Level :

4

Voltage - UL :

300 V

Product Status :

Active

Subcategory :

Terminal Blocks

Termination Style :

Screwless - Leg Spring, Push-In Spring

Number of Contacts :

4

Wire Strip Length :

-

Pitch :

5mm

Rated Voltage :

300V

Material Flammability Rating :

UL94 V-0

Contact Material :

Copper

Wire Size (AWG) :

24AWG to 16AWG
