2201481-1
Or copy the link below:
- Mfr.Part #
- 2201481-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description

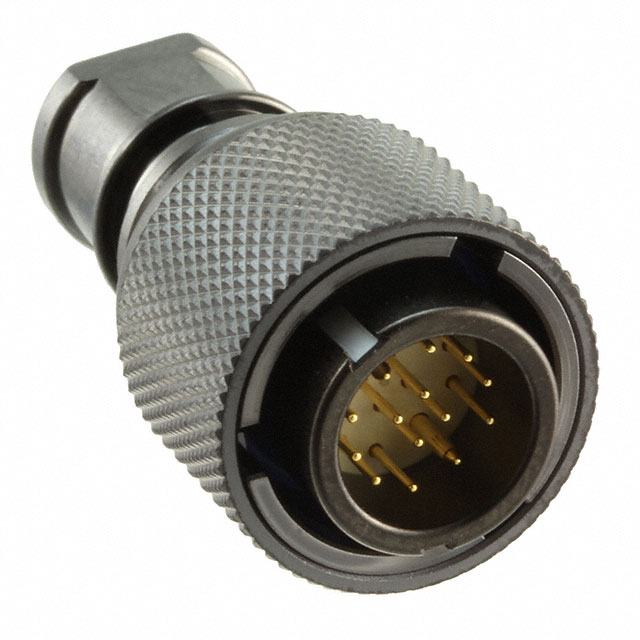

- BAYONET 14P PLUG PS S-CUP CONT K
- Stock
- 31
- In Stock ：
- 31
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Circular Connector Assemblies
- Brand :
- TE Connectivity / AMP
- Product Length (mm) :
- 37.95(mm)
- Product Type :
- Standard Circular Connector
- Mating Style :
- Bayonet
- Shell Material :
- Brass
- IP Rating :
- -
- Operating Temp Range :
- -55C to 150C
- Contact Plating :
- Gold Over Nickel
- Manufacturer :
- TE Connectivity
- Subcategory :
- Circular Connectors
- Mounting Style :
- CABLE
- Contact Material :
- Brass
- Number of Terminals :
- 14
- RoHS :
- Details
- Mounting Angle :
- Straight
- Height :
- 19 mm
- Contact Classification :
- 2POWER/12SIGNAL
- Type :
- Circular
- Shell Plating :
- TIN OVER NICKEL
- Strain Relief :
- No
- Product Diameter (mm) :
- 19(mm)
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Product Category :
- Standard Circular Connector
- Accessory Type :
- -
- Rad Hardened :
- No
- Product Depth (mm) :
- Not Required(mm)
- Gender :
- PL
- Body Orientation :
- Straight
- Termination Method :
- Solder Cup
- Shell Size :
- 15
- Diameter :
- 12.16 mm
- Voltage Rating :
- 200VAC
- Number of Positions :
- 14 Position
- Number of Contacts :
- 14(POS)
- Number of Ports :
- 1(Port)
- Contact Gender :
- Pin
- Product :
- Plugs
- Product Height (mm) :
- Not Required(mm)
- Termination Style :
- Solder
- Datasheets
- 2201481-1
Brass 14 Position Positions
2201481-1 Overview
2201481-1 Features
2201481-1 Applications
There are a lot of TE Connectivity
2201481-1 Circular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
