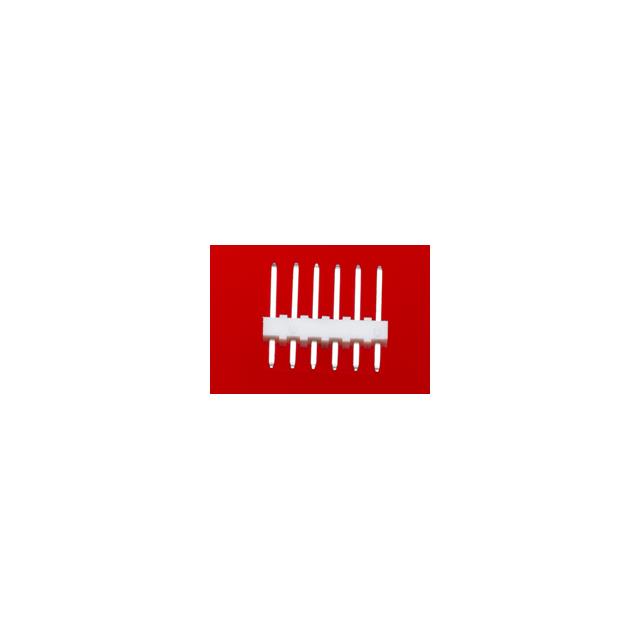

22-03-2201

Manufacturer :

Molex

Product Category :

Unclassified

Type :

Unshrouded Header

Manufacturer :

Molex

Reliability :

COMMERCIAL

Total Number of Contacts :

20

Rated Current (Signal) :

4 A

Contact Material :

Brass

Product Height (mm) :

10.79(mm)

MIL Conformance :

No

Filter Feature :

No

Termination Type :

Solder

Contact Pattern :

RECTANGULAR

Subcategory :

Headers and Edge Type Connectors

Reference Standard :

UL, CSA

Body Depth :

0.13 inch

Series :

*

Housing Color :

White

Current Rating (Max) :

4/Contact(A)

Pitch (mm) :

2.54(mm)

Option :

GENERAL PURPOSE

Number Of PCB Rows :

1

Product Length (mm) :

50.55(mm)

Mounting Style :

Through Hole

Number of Contacts :

20(POS)

DIN Conformance :

No

Reach Compliance Code :

Compliant

UL Flammability Code :

94V-0

Package :

Box

Product Depth (mm) :

2.34(mm)

Contact Plating :

TIN OVER COPPER

Body Breadth :

0.092 inch

Mixed Contacts :

No

Body Orientation :

Straight

HTS Code :

8536.69.40.40

Terminal Pitch :

2.54 mm

Termination Method :

Solder

Product Status :

Active

Number of Contact Rows :

1

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Voltage Rating Max :

250V

Mounting Type :

BOARD

Housing Material :

Nylon

Mating Contact Pitch :

0.1 inch

Operating Temp Range :

0C to 75C

Additional Feature :

Stacked

Durability :

25 Cycles

Gender :

HDR

Terminal Length :

0.135 inch

Packaging :

Bag

Insulation Resistance :

50000000000 Ω

ECCN Code :

EAR99

Insulator Color :

Red

Contact Gender :

Male

Dielectric Withstanding Voltage :

1500VAC V

Body/Shell Style :

Receptacle

Contact Resistance Max :

10(mohm)

PCB Contact Pattern :

RECTANGULAR

Connector Type :

BOARD CONNECTOR

IEC Conformance :

No

Contact Resistance :

20 mΩ

Contact Style :

SQ PIN-SKT
