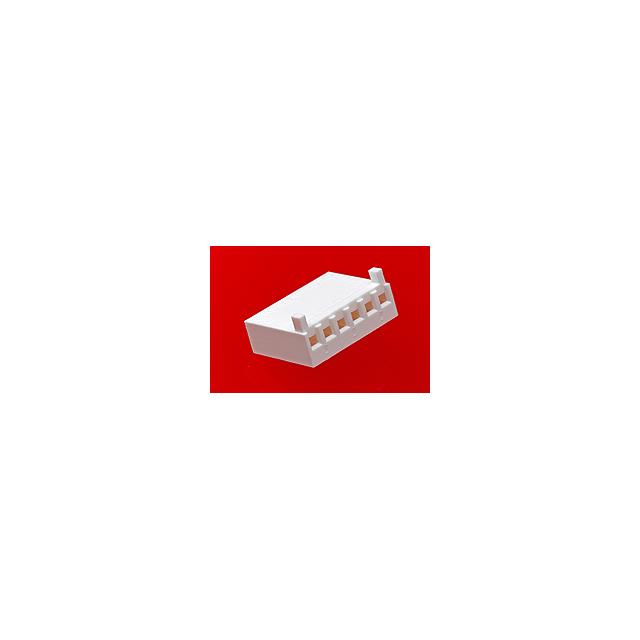

22-01-2135

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Filter Feature :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Package :

Box

Product Status :

Active

Product :

Wire Housings

Contact Pattern :

RECTANGULAR

Connector Type :

BOARD CONNECTOR

Mounting Option 1 :

LOCKING

Insertion Force-Max :

1.946 N

UL Flammability Code :

94V-0

Reference Standard :

UL, CSA

Application :

Signal, Wire-to-Board

Packaging :

Bulk

RoHS :

Details

Mounting Type :

CABLE

Dielectric Withstanding Voltage :

1500VAC V

Pitch :

2.54 mm

Number of Positions :

13 Position

Contact Material :

NOT SPECIFIED

Termination Style :

Crimp

Pbfree Code :

yes

Insulation Resistance :

1000000000 Ω

Factory Lead Time :

4 Weeks

IEC Conformance :

No

Product Type :

Headers and Wire Housings

Type :

Receptacle Housing

Reach Compliance Code :

Compliant

Total Number of Contacts :

13

Polarization Key :

POLARIZED RIB(S)

Additional Feature :

KK, POLARISED

Product Category :

Headers and Wire Housings

Mounting Style :

Cable Mount / Free Hanging

Reliability :

COMMERCIAL

Contact Style :

SQ PIN-SKT

DIN Conformance :

No

Brand :

Molex

Contact Resistance :

10 MΩ

Body Breadth :

0.19 inch

Number of Rows :

1 Row

Series :

6471

Housing Material :

Nylon

Body/Shell Style :

PLUG

Mating Contact Pitch :

0.1 inch

Mixed Contacts :

No

Body Depth :

0.5 inch

Subcategory :

Headers and Wire Housings

Flammability Rating :

UL 94 V-0

Contact Gender :

Socket (Female)

MIL Conformance :

No

Manufacturer :

Molex

Housing Color :

Natural

Withdrawl Force-Min :

.556 N

Tradename :

KK

Termination Type :

Crimp

Insulator Color :

White

Option :

GENERAL PURPOSE
