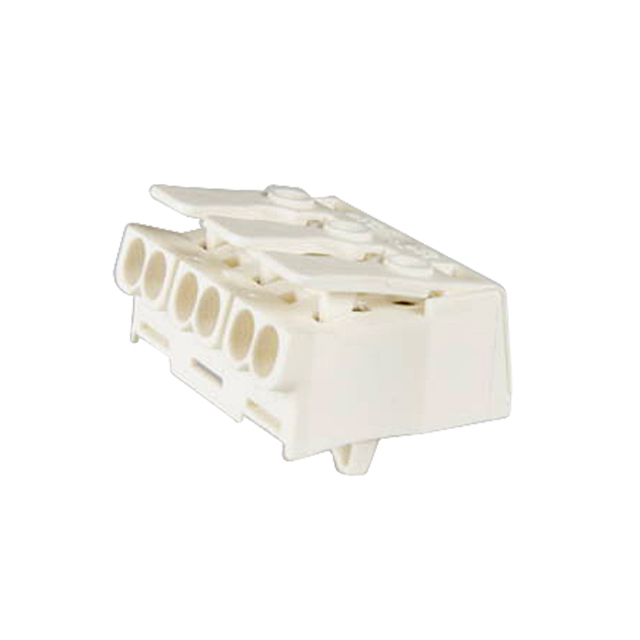

21850

Manufacturer :

Adels-Contact

Product Category :

Solid State Lighting Connector Assemblies

Connection :

-

Rated current In :

6

Torque - Screw :

-

Pollution degree :

2

Pin Length :

2.8 MilliMeters

Termination :

Cage Clamp

Over voltage category :

III

Lead Free :

Lead Free

Number of Poles :

4

Manufacturer part # :

218-504

No. of rows :

1

Content :

1pc(s)

Positions Per Level :

4

Flammability Rating :

UL94 V-0

Width :

13.00mm

Approvals :

UL;CSA

RoHS :

yes

Industrial packaging :

yes

Packaging type :

Other

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 0.5

Features :

+ CAGE CLAMP®

Nominal current :

6A

Number of Pins :

4

Wire Gauge :

20-28 AWG

Number of Levels :

1

AWG max. :

20

Length :

10.90mm

Enclosure material :

Polyamide

Clamp Material - Plating :

Steel - Nickel Plated

Type of fastening :

Solder

Connection Type :

Spring Clamp

Cross section (inflexible) (max.) :

0.50mm²

Number of Contacts :

4

Connectable conductor cross section solid-core :

0.08 - 0.5

Connectable conductor cross section multi-wired :

0.08 - 0.5

Package :

Box

Cross section (flexible) (min.) :

0.08mm²

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Screw Thread :

-

Min. stripping length :

6mm

Product Status :

Active

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.25

Current Rating :

6 A

Composition :

Polyamide

Nominal current (details) :

6A

Stripping length (max.) :

6mm

Mating Orientation :

40° (130°) Angle with Board

Nominal current - rounded value :

6A

Inflammability class of insulation material according to with UL94 :

V0

Actuation direction :

Parallel (to the PCB)

Series :

218

Operating Temperature :

-60°C ~ 105°C

Rated surge voltage :

2.5

Number of Rows :

1

Current :

4 A

Mounting Type :

PCB Mount

Pitch :

0.100 (2.54mm)

Screw Material - Plating :

-

Height :

11.66mm

Manufacturer :

Wago

Temperature Range :

-76 to 221 Degrees F

Color :

Gray

CS :

2.54mm

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Pins per row :

4

Type :

218-504

Nominal voltage :

160V

Voltage :

150 V

Wire protection :

yes

Contact Material :

Copper, Tin

Housing Material :

Nylon

Mount :

Through Hole

Cross section (inflexible) (min.) :

0.08mm²

Cross section (flexible) (max.) :

0.50mm²

Housing Color :

Grey

AWG (min.) :

28
