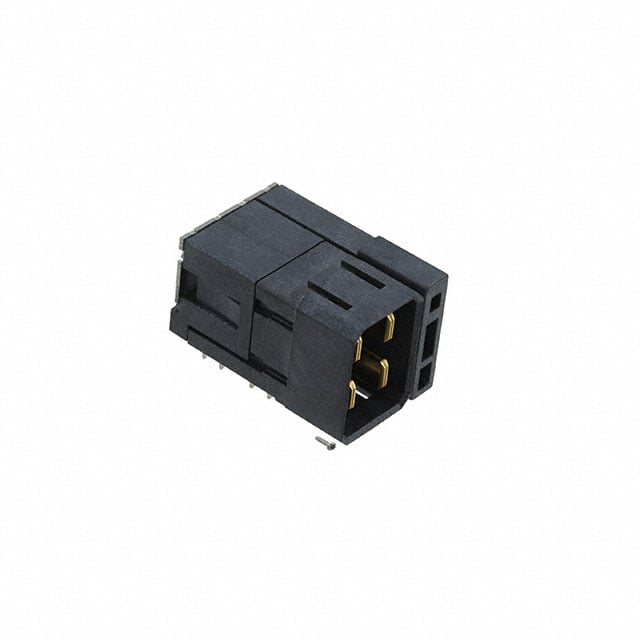

2180851-2
Or copy the link below:
- Mfr.Part #
- 2180851-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER BLADE PWR 8P EDGE MT
- Stock
- 34,220
- In Stock ：
- 34,220
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Rows :
- 2
- Hole Diameter :
- 723.9 µm
- Number of Power Positions :
- 8
- Feature :
- Board Guide
- Connector Style :
- Blade Power
- Differential Signaling :
- No
- Color :
- Black
- Width :
- 14.9987mm
- RoHS Status :
- RoHS Compliant
- Published :
- 2012
- Underplate Material :
- Nickel
- Length - Tail :
- 2.5mm
- Number of Positions :
- 8
- Housing Color :
- Black
- PCB Mounting Orientation :
- Vertical
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Packaging :
- Tray
- Number of Positions Loaded :
- All
- Pitch :
- 5.2mm
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Length :
- 23.97mm
- Contact Current Rating :
- 15A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Glass
- Stack Height :
- 14.88mm
- Voltage - Rated :
- 30V
- Differential Pairs per Column :
- 3
- Contact Layout, Typical :
- 8 Power
- Min Operating Temperature :
- -67°C
- Stackable :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Row Spacing :
- 6.6 mm
- PCB Thickness :
- 3.9878mm
- Series :
- Impact
- Number of Pairs :
- 4
- Connector Type :
- Header, Male Blades
- Plating Thickness :
- 760 nm
- Make First / Break Last :
- No
- Contact Plating :
- Gold, Tin
- Termination :
- Press-Fit
- Factory Lead Time :
- 11 Weeks
- Contact Finish :
- Gold
- Number of Columns :
- 4
- Contact Style :
- Press-Fit
- Operating Temperature :
- -55°C~ 85°C
- Max Operating Temperature :
- 185°C
- Data Rate :
- 25 Gbps
- Orientation :
- Vertical
- Height :
- 14.87932mm
- Datasheets
- 2180851-2
Impact Series Header, Male Blades Press-Fit Gold Black 30.0μin 0.76μm 8 Positions Pitch: 5.2mm -55°C~ 85°C Tray Board Edge, Through Hole, Right Angle
2180851-2 Overview
This product is packaged in a Header, Male Blades box.Board Edge, Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the Impact Series.Use it below 185°C.A minimum temperature of -67°C must be maintained for the operation of this device.In many ways, Board Guide makes it more powerful.Operating temperature is set to -55°C~ 85°C.
2180851-2 Features
Impact series
2180851-2 Applications
There are a lot of TE Connectivity AMP Connectors
2180851-2 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
