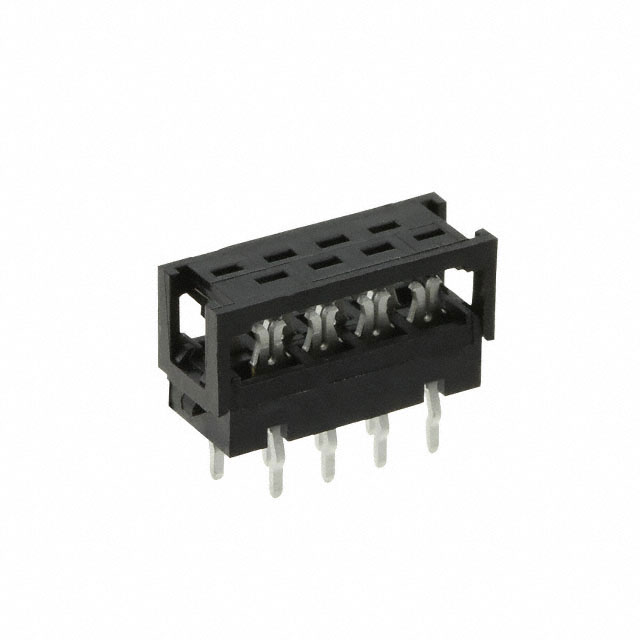

2178713-8
Or copy the link below:
- Mfr.Part #
- 2178713-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN DIP HDR IDC 8POS VERT
- Stock
- 17,733
- In Stock ：
- 17,733
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Board In, Direct Wire to Board
- Board-Side Pitch :
- 0.100 2.54mm
- Wire/Cable Type :
- Ribbon
- Mount :
- Through Hole
- Number of Positions Loaded :
- All
- Row Spacing :
- 0.100 (2.54mm)
- Cable Pitch :
- 0.050 1.27mm
- PCB Thickness :
- 1.6mm
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 100V
- Insulation Resistance :
- 1GOhm
- Wire/Cable Gauge :
- 28 AWG
- Number of Rows :
- 2
- Orientation :
- Vertical
- Number of Pins :
- 8
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Contact Material :
- Brass
- Contact Finish :
- Tin
- Packaging :
- Tape and Reel (TR)
- REACH SVHC :
- No SVHC
- Number of Positions :
- 8
- Termination :
- Through Hole
- Number of Contacts :
- 8
- PCB Mounting Orientation :
- Vertical
- Gender :
- Receptacle
- Series :
- Micro-MaTch
- Connector Type :
- Ribbon Cable, DIP Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 5.08mm
- ELV :
- Compliant
- Housing Material :
- Polyester
- Contact Current Rating :
- 1.4A
- Insulation Diameter :
- 889 µm
- Length :
- 13.589mm
- Feature :
- Board Guide
- Mating Connector Lock :
- Without
- Max Operating Temperature :
- 85°C
- PCB Mount Retention :
- With
- Housing Color :
- Black
- Published :
- 2014
- RoHS Status :
- RoHS Compliant
- Lead Length :
- 3.175mm
- Factory Lead Time :
- 23 Weeks
- Mounting Type :
- Through Hole
- Contact Plating :
- Tin
- Contact Finish Thickness :
- 118.1μin 3.00μm
- Min Operating Temperature :
- -30°C
- Color :
- Black
- Cable Termination :
- IDC
- Pitch :
- 1.27mm
- Current Rating :
- 1.3A
- Datasheets
- 2178713-8
