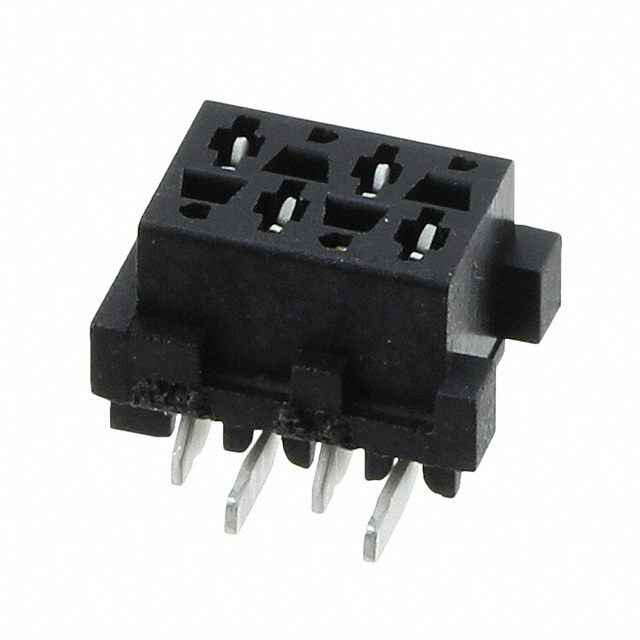

2178711-4
Or copy the link below:
- Mfr.Part #
- 2178711-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS 0.1 TIN SMD
- Stock
- 15,293
- In Stock ：
- 15,293
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Total Number of Contacts :
- 4
- Insulation Color :
- Black
- Factory Lead Time :
- 41 Weeks
- Pitch - Mating :
- 0.100 2.54mm
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Contact Type :
- Forked
- Insulation Height :
- 0.209 5.30mm
- Number of Rows :
- 2
- Number of Positions Loaded :
- All
- Insulation Resistance :
- 1GOhm
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Connector Type :
- Receptacle
- Packaging :
- Tape and Reel (TR)
- Number Of PCB Rows :
- 2
- Contact Finish - Mating :
- Tin
- Height :
- 5.334mm
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Durability :
- 8 Cycles
- Length :
- 7.0866mm
- Applications :
- General Purpose, Telecommunications
- Style :
- Board to Board or Cable
- Fastening Type :
- Push-Pull
- Voltage - Rated :
- 100Vdc
- Contact Current Rating :
- 950mA
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Orientation :
- Vertical
- Contact Gender :
- FEMALE
- Reliability :
- COMMERCIAL
- REACH SVHC :
- No SVHC
- Termination :
- Solder
- Polarization Key :
- POLARIZED HOUSING
- Mating Contact Pitch :
- 0.05 inch
- PCB Contact Pattern :
- STAGGERED
- Dielectric Withstanding Voltage :
- 500VAC V
- Series :
- Micro-MaTch
- RoHS Status :
- RoHS Compliant
- Mount :
- Surface Mount
- Insulation Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Mating Connector Lock :
- Without
- Operating Supply Voltage :
- 100V
- ELV :
- Compliant
- Mounting Type :
- Surface Mount
- Published :
- 2014
- Operating Temperature :
- -30°C~85°C
- Number of Conductors :
- ONE
- Number of Positions :
- 4
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Current Rating :
- 1.3A
- Datasheets
- 2178711-4
2 Rows Receptacle Solder Brass Surface Mount Tape & Reel (TR) Tin Polyamide (PA46), Nylon 4/6, Glass Filled 4 Positions Forked
2178711-4 Overview
This product is packaged in a Receptacle box.Surface Mount indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Micro-MaTch Series.There is the possibility of using the device for General Purpose, Telecommunications.By Surface Mount, the part is mounted.The operating voltage of this memory is 100V.Operating temperature is set to -30°C~85°C.
2178711-4 Features
Micro-MaTch series
2178711-4 Applications
There are a lot of TE Connectivity AMP Connectors
2178711-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
