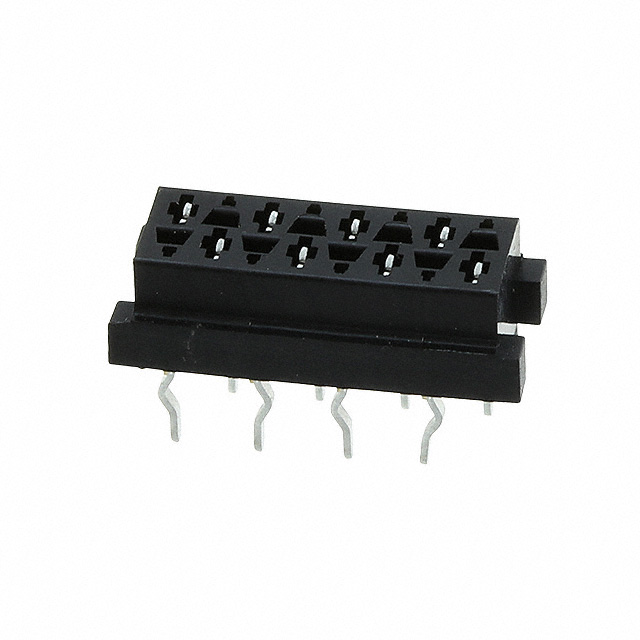

2178710-8
Or copy the link below:
- Mfr.Part #
- 2178710-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 8POS 0.1 TIN PCB
- Stock
- 31
- In Stock ：
- 31
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Number of Positions :
- 8
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 850mA
- Mating Connector Lock :
- Without
- Length :
- 12.2mm
- Termination :
- Kinked Pin, Solder
- Connector Type :
- Receptacle
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Number of Conductors :
- ONE
- PCB Mount Retention :
- With
- Contact Current Rating :
- 1.4A
- Operating Supply Voltage :
- 100V
- Style :
- Board to Board or Cable
- PCB Contact Pattern :
- STAGGERED
- Reliability :
- COMMERCIAL
- Number of Positions Loaded :
- All
- Contact Type :
- Forked
- Dielectric Withstanding Voltage :
- 500VAC V
- Contact Material :
- Brass
- Applications :
- General Purpose, Telecommunications
- REACH SVHC :
- No SVHC
- Orientation :
- Vertical
- Insulation Height :
- 0.157 4.00mm
- Number of Rows :
- 2
- Mounting Type :
- Through Hole
- Body Depth :
- 0.157 inch
- Mating Contact Pitch :
- 0.05 inch
- Insulation Color :
- Black
- Plating Thickness :
- 5 nm
- Contact Gender :
- FEMALE
- Series :
- Micro-MaTch
- Contact Length - Post :
- 0.122 3.10mm
- Height :
- 4.064mm
- Contact Finish - Mating :
- Tin
- Insulation Resistance :
- 1GOhm
- Pitch - Mating :
- 0.100 2.54mm
- Operating Temperature :
- -30°C~85°C
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Factory Lead Time :
- 23 Weeks
- Polarization Key :
- POLARIZED HOUSING
- Housing Material :
- Polyester
- RoHS Status :
- RoHS Compliant
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Number Of PCB Rows :
- 2
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tape and Reel (TR)
- Voltage - Rated :
- 100Vdc
- Lead Length :
- 3.0988mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Published :
- 2014
- Fastening Type :
- Push-Pull
- Approval Agency :
- UL
- Datasheets
- 2178710-8
2 Rows Receptacle Kinked Pin, Solder Brass Through Hole Tape & Reel (TR) Tin Polybutylene Terephthalate (PBT) 8 Positions Forked
2178710-8 Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the Micro-MaTch Series.The device may be used for the following applications: General Purpose, Telecommunications.It is mounted by Through Hole.Its operating supply voltage is 100V.It operates at an operating temperature of -30°C~85°C.
2178710-8 Features
Micro-MaTch series
2178710-8 Applications
There are a lot of TE Connectivity AMP Connectors
2178710-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
