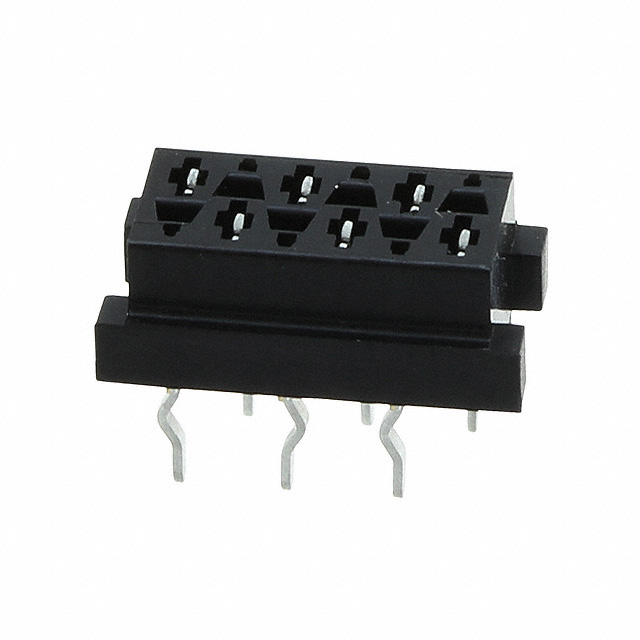

2178710-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

Contact Type :

Forked

Lead Length :

3.0988mm

RoHS Status :

RoHS Compliant

Contact Length - Post :

0.122 3.10mm

Operating Temperature :

-30°C~85°C

Mounting Type :

Through Hole

Packaging :

Tape and Reel (TR)

Connector Type :

Receptacle

Insulation Resistance :

1GOhm

Plating Thickness :

5 nm

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch - Mating :

0.100 2.54mm

Contact Current Rating :

1.4A

Mating Connector Lock :

Without

Lead Free :

Lead Free

Contact Gender :

FEMALE

Number of Positions :

6

Factory Lead Time :

4 Weeks

Applications :

General Purpose, Telecommunications

Insulation Material :

Polybutylene Terephthalate (PBT)

Contact Material :

Brass

Number Of PCB Rows :

2

Contact Finish Thickness - Mating :

118.1μin 3.00μm

Reliability :

COMMERCIAL

Orientation :

Vertical

Number of Pins :

4

Voltage - Rated :

100Vdc

PCB Mount Retention :

With

Contact Finish Thickness - Post :

118.1μin 3.00μm

Dielectric Withstanding Voltage :

500VAC V

Mating Contact Pitch :

0.05 inch

Published :

2014

Number of Rows :

2

REACH SVHC :

No SVHC

Style :

Board to Board or Cable

PCB Contact Pattern :

STAGGERED

Operating Supply Voltage :

100V

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Termination :

Kinked Pin, Solder

Body Depth :

0.157 inch

Row Spacing - Mating :

0.100 (2.54mm)

ELV :

Compliant

Polarization Key :

POLARIZED HOUSING

Number of Positions Loaded :

All

Insulation Color :

Black

Height :

4.064mm

Housing Material :

Polyester

Length :

9.7028mm

Series :

Micro-MaTch

Contact Finish - Mating :

Tin

Current Rating :

850mA

Durability :

8 Cycles

Insulation Height :

0.157 4.00mm

Number of Conductors :

ONE

Mount :

Through Hole

Fastening Type :

Push-Pull
