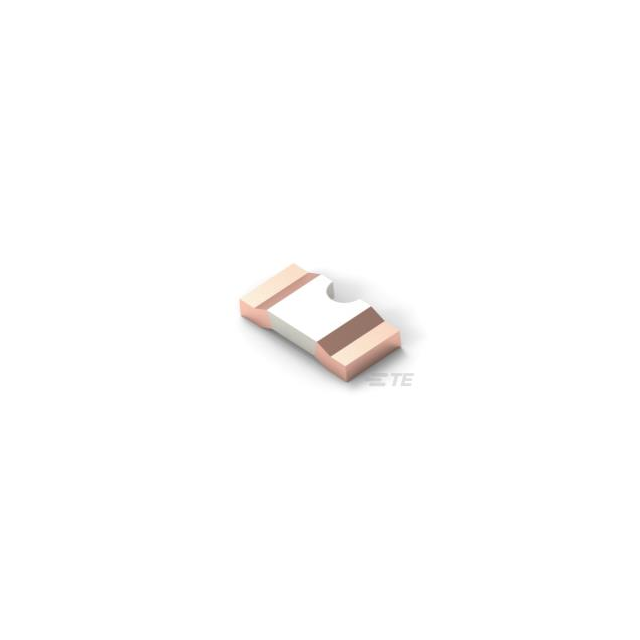

2176076-4
Or copy the link below:
- Mfr.Part #
- 2176076-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- 4120
- Datasheet
- Download
- Description
- 2176076-4
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Unclassified
- Failure Rate :
- Not Required
- Tolerance (+ or -) :
- 1%
- Military Standard :
- Not
- Product Length (mm) :
- 10.5(mm)
- Anti-Sulfurated :
- No
- Published :
- 2012
- Resistance Tolerance :
- ± 1%
- Termination Style :
- Pad
- ELV :
- Compliant
- Lead Free :
- Lead Free
- Width :
- 5.0038mm
- Product Width :
- 5 mm
- REACH SVHC :
- Unknown
- Anti-Surge :
- No
- Min Operating Temperature :
- -55°C
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Product Depth (mm) :
- 5(mm)
- Case Style :
- Molded
- Termination :
- SMD/SMT
- Number of Terminations :
- 2
- Construction :
- RECTANGULAR
- Case Size :
- 4120
- Resistance :
- 3mOhm
- Composition :
- Metal Element, Metal Film
- Packaging :
- Cut Tape
- Tolerance :
- 1%
- Temperature Coefficient :
- 50 ppm/°C
- Temperature Range @ Derated Power :
- 85 TO 170
- Number of Terminals :
- 2
- Product Diameter (mm) :
- Not Required(mm)
- Current Sensing :
- yes
- Power Rating(s) :
- 3(W)
- Factory Lead Time :
- 7 Weeks
- Lead Spacing (nom) :
- Not Required(mm)
- Case Code (Imperial) :
- 4120
- Operating Temp Range :
- -55C to 170C
- Length :
- 10.4902mm
- Max Operating Temperature :
- 170°C
- Package Type :
- SMD
- Package / Case :
- 4120
- Case Code (Metric) :
- 1050
- Product Length :
- 10.5 mm
- Power Rating :
- 3W
- Height :
- 482.6μm
- Power Dissipation-Max :
- 3W
- Depth :
- 5mm
- Datasheets
- 2176076-4
Metal Element, Metal Film, 3mOhm, 1%,
