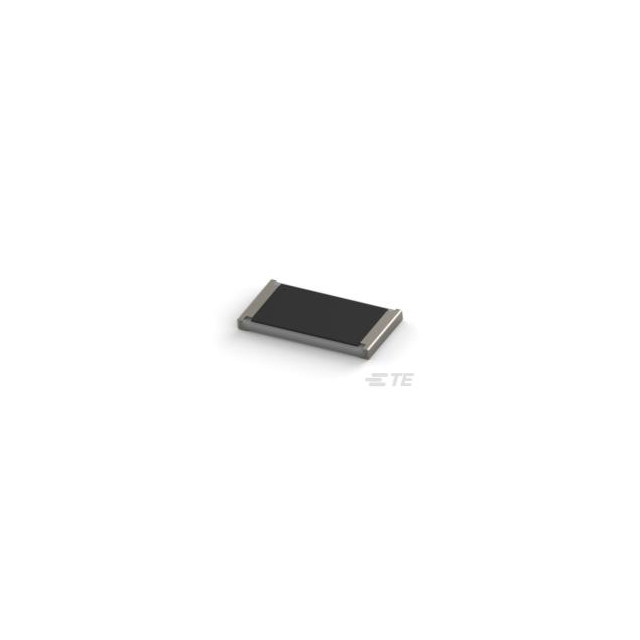

2176071-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Unclassified

Minimum Operating Temperature (°C) :

-55

Temperature Range @ Derated Power :

70 TO 155

Package/Case :

2512

Qualification :

AEC-Q200

Packaging :

Tape and Reel

Product Height (mm) :

0.55

Termination Style :

Pad

Case Size :

2512

Product Length (mm) :

6.35

Current Sensing :

No

Product Depth (mm) :

3.2

Type :

Thick Film

Product Status :

Active

Automotive :

yes

Maximum Voltage Rating (V) :

250

Fail Safe Fusible Resistor :

No

Temperature Coefficient (ppm/°C) :

±100

Case Style :

Molded

Operating Temp Range :

-55C to 155C

Length Tolerance (mm) :

±0.1

Tolerance (+ or -) :

1%

Anti-Sulfurated :

No

Power Rating :

2 W

Resistance Tolerance :

± 1%

Product Length :

6.35 mm

Height Tolerance (mm) :

±0.1

Temperature Coefficient :

± 100ppm/°C

Lead Spacing (nom) :

Not Required(mm)

Military Standard :

Not Required

Mounting :

Surface Mount

Product Width :

3.2 mm

Number of Terminals :

2

Failure Rate :

Not Required

PPAP :

Unknown

Construction :

RECTANGULAR

Anti-Surge :

No

Resistance :

180 kOhm

Depth Tolerance (mm) :

±0.2

Power Rating(s) :

2(W)

Maximum Operating Temperature (°C) :

155

Product Diameter (mm) :

Not Required(mm)

Package Type :

SMD

Resistor Type :

High Power

EU RoHS :

Compliant with Exemption

Package :

Box

Package Shape :

RECTANGULAR

Power Rating (W) :

2

Voltage Rating :

250 V

Resistance Value (Ohm) :

180K

Tolerance :

1%

ECCN (US) :

EAR99

Temperature Range @ Derated Power (°C) :

70 TO 155

Series :

*
