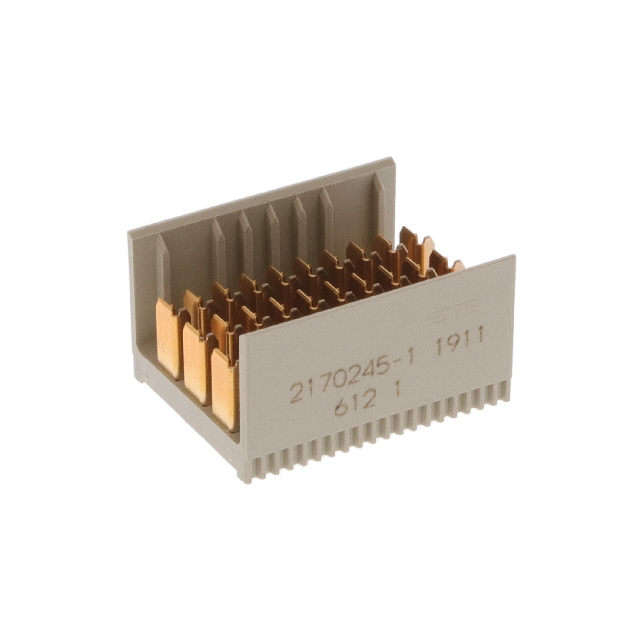

2170245-1
Or copy the link below:
- Mfr.Part #
- 2170245-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER HIGH SPEED 90POS PCB
- Stock
- 260
- In Stock ：
- 260
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Operating Temperature :
- -65°C~105°C
- Pitch :
- 0.098 2.50mm
- Number of Pairs :
- 30
- Housing Material :
- Polyester
- Series :
- Z-Pack HM-ZD
- Factory Lead Time :
- 8 Weeks
- Termination :
- Press-Fit
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Make First / Break Last :
- No
- Plating :
- Gold
- Voltage - Rated :
- 250V
- Published :
- 2011
- Number of Rows :
- 6
- Material Flammability Rating :
- UL94 V-0
- Contact Finish :
- Gold
- Number of Positions Loaded :
- All
- Current Rating (Amps) :
- 0.700A
- Number of Pins :
- 60
- Mounting Type :
- Through Hole
- Number of Contacts :
- 60
- Circuit Application :
- Signal
- Number of Columns :
- 10
- Packaging :
- Tube
- Connector Style :
- High Speed
- Max Current Rating :
- 700mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Housing Color :
- Grey
- Current Rating :
- 700mA
- Number of Positions :
- 90
- ELV :
- Compliant
- Contact Plating :
- Gold
- Orientation :
- Vertical
- Connector Type :
- Header, Male Pins
- PCB Mounting Orientation :
- Vertical
- Contact Material :
- Bronze
- Length :
- 24.9mm
- Plating Thickness :
- 760 nm
- Shielding :
- Unshielded
- Operating Supply Voltage :
- 250V
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Mount :
- Through Hole
- Datasheets
- 2170245-1
Z-PACK HM-Zd Series Header, Male Pins Press-Fit Gold 30.0μin 0.76μm 90 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Through Hole
2170245-1 Overview
This product is packaged in a Header, Male Pins box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Z-PACK HM-Zd Series.It is equipped with 60 pins.By Through Hole, the part is mounted.Operating temperature is set to -65°C~105°C.The Backplane Connector is capable of working with a supply voltage of 250V.
2170245-1 Features
Z-PACK HM-Zd series
2170245-1 Applications
There are a lot of TE Connectivity AMP Connectors
2170245-1 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
