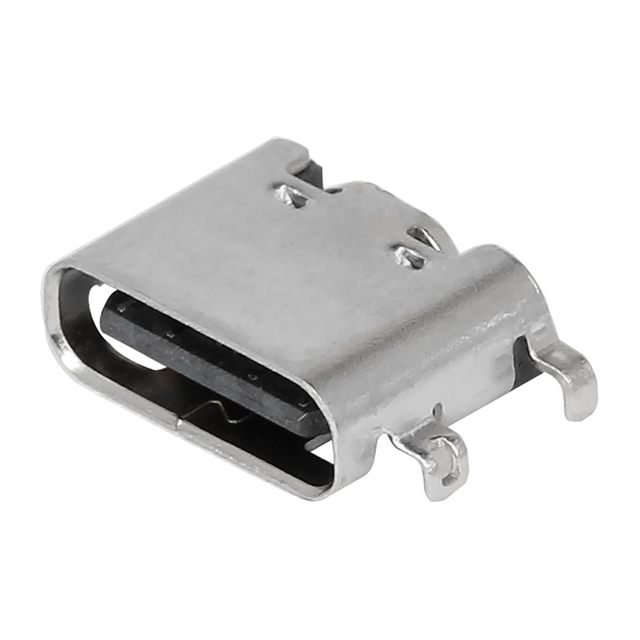

2169900002
Or copy the link below:
- Mfr.Part #
- 2169900002
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCP USB2.0 TYP C 24P SMD RA
- Stock
- 1,116
- In Stock ：
- 1,116
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- USB, DVI, HDMI Connector Assemblies
- Brand :
- Molex
- Orientation :
- RIGHT ANGLE
- Contact Finish :
- Gold
- Insulation Resistance :
- 100 MOhms
- Contact Plating :
- Gold Flash Plated Contacts
- Number of Ports :
- 1
- Packaging :
- Cut Tape
- Connector Type :
- USB-C (USB TYPE-C)
- Material Flammability Rating :
- UL94 V-0
- Base Product Number :
- 216990
- Operating Temperature :
- -40°C ~ 85°C
- Product Category :
- USB Connectors
- Subcategory :
- USB Connectors
- Mounting Type :
- Surface Mount, Right Angle; Through Hole
- Product :
- USB Type C Connectors
- Type :
- Type C
- Mating Cycles :
- 10000
- RoHS :
- Details
- Specifications :
- USB 2.0
- Termination :
- Solder
- Shell Plating :
- Gold
- Termination Style :
- SMD/SMT
- Series :
- 216990
- Features :
- -
- Flammability Rating :
- UL 94 V-0
- Package :
- Digi-Reel?
- Voltage - Rated :
- 30VAC/DC
- Ingress Protection :
- -
- Gender :
- Receptacle
- Manufacturer :
- Molex
- Current Rating (Amps) :
- 5A
- Current Rating :
- 1.25 A
- Mounting Angle :
- RIGHT ANGLE
- Number of Contacts :
- 24 (16+8 Dummy)
- Shielding :
- Shielded
- Shell/Shielding Material :
- Steel, Stainless
- Mounting Feature :
- Horizontal, Mid Mount
- Board Thickness :
- 0.8 mm
- Standard :
- USB 2.0
- Product Status :
- Active
- Contact Material :
- COPPER ALLOY
- Insulation Color :
- -
- Mounting Style :
- SMD/SMT
- Voltage Rating :
- 30 V
- Minimum Operating Temperature :
- - 40 C
- Product Type :
- USB Connectors
- Color :
- Black
- Maximum Operating Temperature :
- + 85 C
- Datasheets
- 2169900002
