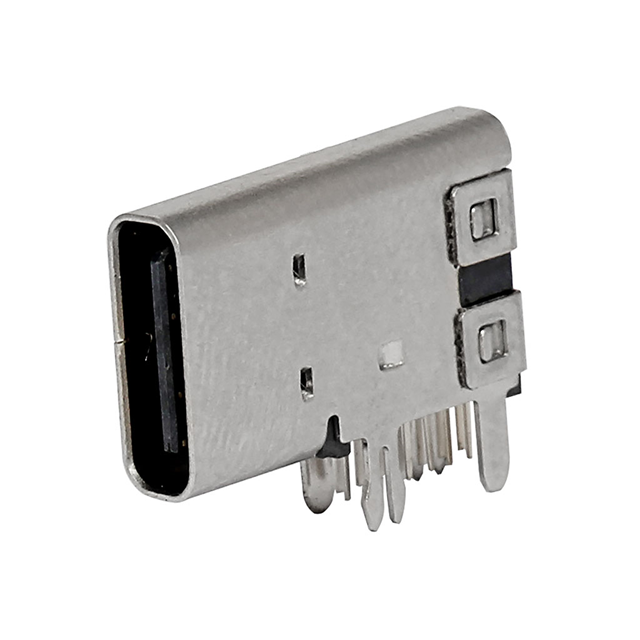

2169890001
Or copy the link below:
- Mfr.Part #
- 2169890001
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT USB2.0 TYPE C 24POS RA
- Stock
- 9,086
- In Stock ：
- 9,086
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- USB, DVI, HDMI Connector Assemblies
- Number of Contacts :
- 24 (14+10 Dummy)
- Color :
- Black
- Mating Cycles :
- 10000
- Specifications :
- USB 2.0
- Type :
- Type C
- Current Rating :
- 1.25 A
- Base Product Number :
- 216989
- Subcategory :
- USB Connectors
- Standard :
- USB 2.0
- Product Status :
- Active
- Product Category :
- USB Connectors
- Ingress Protection :
- -
- Material Flammability Rating :
- UL94 V-0
- Contact Plating :
- Gold Flash Plated Contacts
- Number of Ports :
- 1
- Minimum Operating Temperature :
- - 40 C
- Brand :
- Molex
- Shell/Shielding Material :
- Steel, Stainless
- Operating Temperature :
- -40°C ~ 85°C
- Mounting Style :
- PCB Mount
- Insulation Color :
- -
- Current Rating (Amps) :
- 5A
- RoHS :
- Details
- Contact Material :
- COPPER ALLOY
- Connector Type :
- USB-C (USB TYPE-C)
- Features :
- -
- Termination Style :
- Through Hole
- Voltage - Rated :
- 30VAC/DC
- Product :
- USB Type C Connectors
- Contact Finish :
- Gold
- Termination :
- Solder
- Mounting Type :
- Through Hole, Right Angle
- Voltage Rating :
- 30 V
- Series :
- 216989
- Insulation Resistance :
- 100 MOhms
- Gender :
- Receptacle
- Shell Plating :
- Gold
- Flammability Rating :
- UL 94 V-0
- Mounting Feature :
- Vertical
- Product Type :
- USB Connectors
- Packaging :
- MouseReel
- Orientation :
- RIGHT ANGLE
- Maximum Operating Temperature :
- + 85 C
- Board Thickness :
- 1.2 mm
- Manufacturer :
- Molex
- Mounting Angle :
- RIGHT ANGLE
- Package :
- Digi-Reel?
- Shielding :
- Shielded
- Datasheets
- 2169890001
2169890001 Documents
2169890001 datasheet pdf and USB, DVI, HDMI Connectors product details from Molex stock available at Xinshop
Molex 2169890001 is a USB 2.0 Type C 24 Position Receptacle Connector with a surface mount design. It is designed to provide reliable and secure connections for USB 2.0 applications.
Features:
• 24 Position Receptacle Connector
• USB 2.0 Type C
• Surface Mount Design
• Reliable and Secure Connections
• RoHS Compliant
Applications:
Molex 2169890001 is suitable for a wide range of USB 2.0 applications, including consumer electronics, automotive, and industrial applications. It is also suitable for applications requiring a secure and reliable connection.
