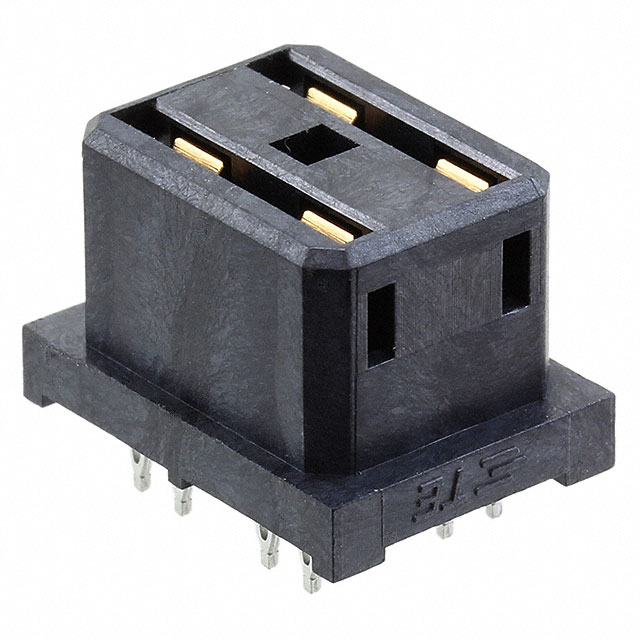

2169806-1
Or copy the link below:
- Mfr.Part #
- 2169806-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT BLADE PWR 4POS PCB
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Data Rate :
- 25 Gbps
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 15 Weeks
- Connector Style :
- Blade Power
- Contact Plating :
- Gold, Tin
- Series :
- Impact
- Number of Power Positions :
- 8
- Number of Rows :
- 2
- Housing Material :
- Thermoplastic
- ELV :
- Compliant
- Contact Current Rating :
- 15A
- PCB Thickness :
- 1.6mm
- Number of Columns :
- 2
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Width :
- 11mm
- Termination :
- Press-Fit
- Number of Positions Loaded :
- All
- Pitch :
- 5.2mm
- Differential Pairs per Column :
- 3
- Height :
- 9.8mm
- Contact Finish :
- Gold
- Color :
- Black
- Connector Type :
- Receptacle, Female Blade Sockets
- Length - Tail :
- 2.5mm
- Stackable :
- No
- Number of Positions :
- 4
- Published :
- 2012
- Housing Color :
- Black
- Contact Layout, Typical :
- 4 Power
- Hole Diameter :
- 723.9 µm
- PCB Mounting Orientation :
- Vertical
- Underplate Material :
- Nickel
- Plating Thickness :
- 760 nm
- Number of Pairs :
- 2
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Orientation :
- Vertical
- Max Operating Temperature :
- 185°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Differential Signaling :
- No
- Contact Style :
- Press-Fit
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -55°C~ 85°C
- Row Spacing :
- 6.14 mm
- Make First / Break Last :
- No
- Min Operating Temperature :
- -67°C
- Material Flammability Rating :
- UL94 V-0
- Length :
- 14.98mm
- Datasheets
- 2169806-1
Impact Series Receptacle, Female Blade Sockets Press-Fit Gold Black 30.0μin 0.76μm 4 Positions Pitch: 5.2mm -55°C~ 85°C Bulk Through Hole
2169806-1 Overview
Packaging is Receptacle, Female Blade Sockets.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Impact Series, it can be found in this category.Temperatures below 185°C are best for using it.There's a minimum temperature of -67°C for this device.The device is operating at -55°C~ 85°C Operating Temperature.
2169806-1 Features
Impact series
2169806-1 Applications
There are a lot of TE Connectivity AMP Connectors
2169806-1 Backplane Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
