2169797-8
Or copy the link below:
- Mfr.Part #
- 2169797-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER BLADE PWR 4P EDGE MT
- Stock
- 30,433
- In Stock ：
- 30,433
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Contact Finish :
- Gold
- PCB Thickness :
- 1.6mm
- Pitch :
- 5.2mm
- Operating Temperature :
- -55°C~ 85°C
- Packaging :
- Tray
- Color :
- Black
- Max Operating Temperature :
- 185°C
- Number of Columns :
- 2
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 4
- Orientation :
- Vertical
- Connector Style :
- Blade Power
- Material Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Housing Color :
- Black
- Min Operating Temperature :
- -67°C
- Contact Plating :
- Gold, Tin
- Contact Layout, Typical :
- 4 Power
- Differential Pairs per Column :
- 3
- Differential Signaling :
- No
- Factory Lead Time :
- 13 Weeks
- Underplate Material :
- Nickel
- Number of Power Positions :
- 8
- Contact Current Rating :
- 15A
- Make First / Break Last :
- No
- Published :
- 2012
- Length - Tail :
- 2.5mm
- Plating Thickness :
- 760 nm
- PCB Mounting Orientation :
- Vertical
- Hole Diameter :
- 723.9 µm
- Series :
- Impact
- Number of Positions Loaded :
- All
- Height :
- 14.87932mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Glass
- Stackable :
- No
- Width :
- 11mm
- Mount :
- Edge, Through Hole
- Flammability Rating :
- UL94 V-0
- Row Spacing :
- 6.6 mm
- Connector Type :
- Header, Male Blades
- Data Rate :
- 25 Gbps
- Contact Style :
- Press-Fit
- Termination :
- Press-Fit
- Length :
- 23.97mm
- Number of Rows :
- 2
- Datasheets
- 2169797-8

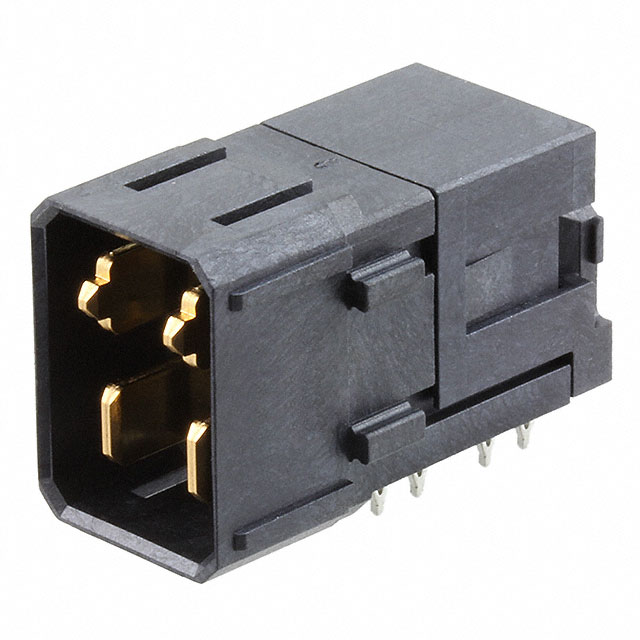

Impact Series Header, Male Blades Press-Fit Gold Black 4 Positions Pitch: 5.2mm -55°C~ 85°C Tray Board Edge, Through Hole, Right Angle
2169797-8 Overview
Packaging is in the form of Header, Male Blades.This device has a Board Edge, Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Impact Series.If the temperature is below 185°C, it's best to use it.-67°C is the minimum temperature for this device.There is a mounting hole at Edge, Through Hole.Devices operate at -55°C~ 85°C operating temperatures.
