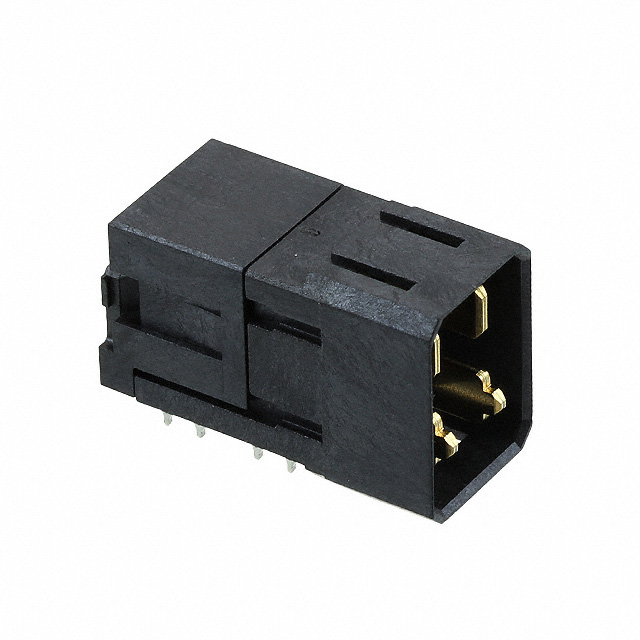

2169797-4
Or copy the link below:
- Mfr.Part #
- 2169797-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER BLADE PWR 4P EDGE MT
- Stock
- 605
- In Stock ：
- 605
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Terminations :
- 16
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Connector Type :
- Header, Male Blades
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~ 85°C
- Factory Lead Time :
- 10 Weeks
- Contact Layout, Typical :
- 4 Power
- Contact Finish :
- Gold
- Series :
- Impact
- Published :
- 2012
- Stack Height :
- 14.88mm
- Housing Color :
- Black
- RoHS Status :
- RoHS Compliant
- Connector Style :
- Blade Power
- Length - Tail :
- 2.5mm
- Plating Thickness :
- 760 nm
- Color :
- Black
- Number of Rows :
- 4
- Termination :
- Press-Fit
- Number of Positions :
- 4
- Packaging :
- Tray
- Orientation :
- RIGHT ANGLE
- Number of Columns :
- 2
- Contact Current Rating :
- 15A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Depth :
- 23.97mm
- Pitch :
- 5.2mm
- Contact Plating :
- Gold, Tin
- Number of Ports :
- 1
- Housing Material :
- Polymer
- Make First / Break Last :
- yes
- Length :
- 23.97mm
- Number of Positions Loaded :
- All
- Datasheets
- 2169797-4
Impact Series Header, Male Blades Press-Fit Gold Black 4 Positions Pitch: 5.2mm -55°C~ 85°C Tray Board Edge, Through Hole, Right Angle
2169797-4 Overview
The product comes in a package of Header, Male Blades.Board Edge, Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Impact Series.It operates at an operating temperature of -55°C~ 85°C.The device has 1 ports for managing a variety of tasks.On the chip, it is estimated that there are 16 termination points.
2169797-4 Features
16 basic kinds of terminations
Impact series
2169797-4 Applications
There are a lot of TE Connectivity AMP Connectors
2169797-4 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
