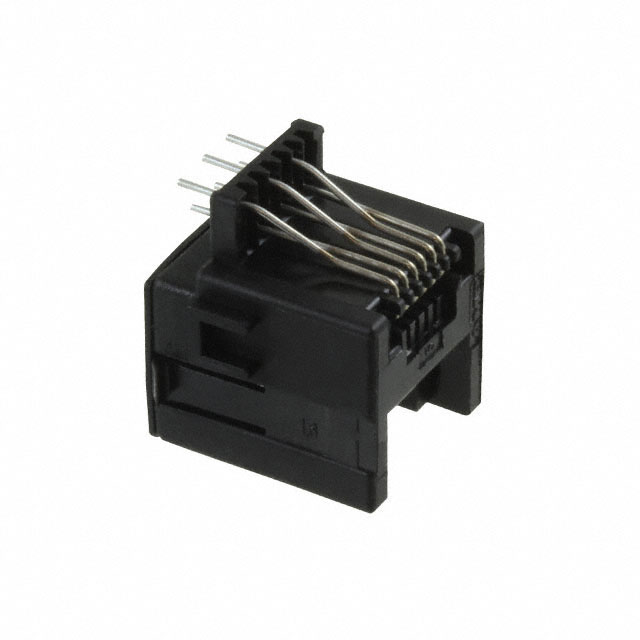

216446-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

DIN Conformance :

No

Durability :

750 Cycles

Pbfree Code :

yes

Length :

15.7mm

Plating Thickness :

50μin

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

PCB Contact Pattern :

STAGGERED

Empty Shell :

No

Feature :

Panel Lock, Panel Stops

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Max Current Rating :

1.5A

Height :

12mm

Factory Lead Time :

16 Weeks

Operating Temperature :

-40°C~70°C

Tab Direction :

User Selectable

Keyed :

No

Option :

GENERAL PURPOSE

Shell Material :

Polyester

Width :

15.7mm

Element Configuration :

Single

Orientation :

Vertical

Flammability Rating :

UL94 HB

Contact Plating :

Gold, Nickel

MIL Conformance :

No

Packaging :

Tape and Reel (TR)

Reference Standard :

UL

Max Voltage Rating (AC) :

150V

Contact Finish :

Gold

Depth :

19mm

Number of Positions/Contacts :

6p6c (RJ11, RJ12, RJ14, RJ25)

Termination :

Solder

Package Quantity :

700

Color :

Black

Length - Tail :

2.79mm

Shielding :

Unshielded

Contact Material :

Phosphor Bronze

IEC Conformance :

No

Contact Style :

TELCOM, MODULAR

Gender :

FEMALE

Shell Finish :

TIN OVER NICKEL

Reliability :

COMMERCIAL

Mounting Type :

Through Hole, Bottom Entry; Through Board

Ratings :

Cat3

Circuit Application :

Signal

Direction :

User Selectable

Number of Positions :

6

Contact Finish Thickness :

49.3μin 1.25μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

LED Color :

Does Not Contain LED

Filter Feature :

No

Mixed Contacts :

No

PCB Thickness :

1.6mm

Housing Material :

Polyamide (PA), Nylon, Glass Filled

Total Number of Contacts :

6

Published :

2005

Number of Ports :

1

Mount :

Through Hole

Connector Type :

JACK

Pitch :

2.54mm
