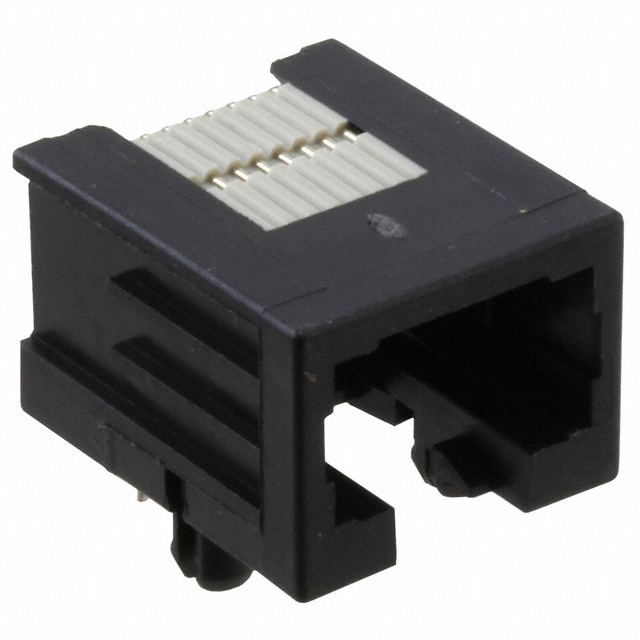

215877-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

IEC Conformance :

No

Empty Shell :

No

Filter Feature :

No

Contact Plating :

Nickel, Tin

Total Number of Contacts :

8

Mixed Contacts :

No

Insulation Resistance :

500000000Ohm

Contact Finish Thickness - Mating :

1.27μm

RoHS Status :

RoHS Compliant

Packaging :

Tape and Reel (TR)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Durability :

750 Cycles

Depth :

18.1mm

Shielding :

Unshielded

Termination :

Solder

Keyed :

No

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Contact Resistance :

30mOhm

Max Voltage Rating (AC) :

150V

Reference Standard :

UL

JESD-609 Code :

e3

Housing Material :

Polybutylene Terephthalate (PBT)

Ratings :

Cat3

Length - Tail :

3mm

Plating Thickness :

50μin

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

Tab Direction :

Down

Contact Style :

TELCOM, MODULAR

Color :

Black

Number of Ports :

1

REACH SVHC :

No SVHC

Feature :

Board Lock

Contact Material :

Phosphor Bronze

MIL Conformance :

No

Number of Positions :

8

UL Flammability Code :

94V-0

Current Rating :

1.5A

Contact Finish :

Gold

PCB Thickness :

1.6mm

Option :

GENERAL PURPOSE

Flammability Rating :

UL94 V-0

Operating Temperature (Max) :

70°C

Connector Type :

JACK

Element Configuration :

Single

Gender :

FEMALE

Factory Lead Time :

17 Weeks

PCB Contact Pattern :

STAGGERED

ELV :

Compliant

Mounting Option 1 :

LOCKING

Reliability :

COMMERCIAL

Lead Free :

Lead Free

PCB Mounting Orientation :

RIGHT ANGLE

Mounting Type :

Through Hole

Height :

11.5mm

DIN Conformance :

No

Operating Temperature (Min) :

-40°C

Circuit Application :

Signal

Pbfree Code :

yes

Pitch :

2.54mm

LED Color :

Does Not Contain LED

Length :

15.2mm

Published :

2005

Body Breadth :

0.453 inch

Orientation :

90° Angle (Right)
