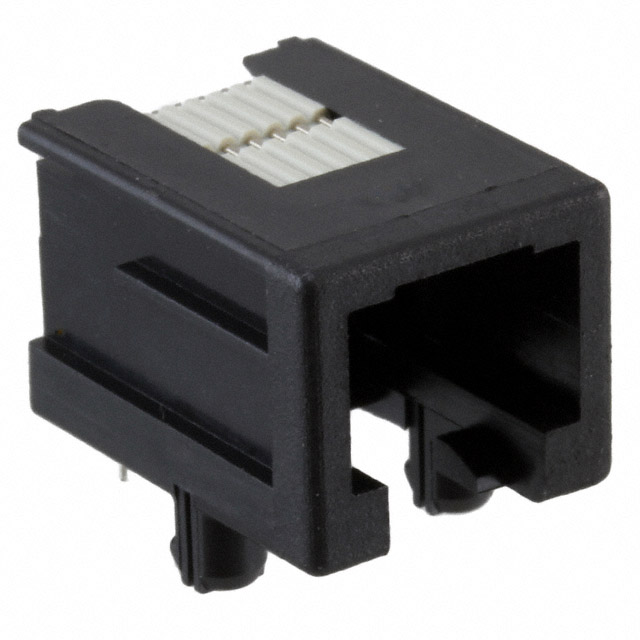

215876-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Modular Connector Jacks

Pitch :

2.54mm

Height :

11.65mm

Empty Shell :

No

Termination :

Solder

Circuit Application :

Signal

PCB Contact Pattern :

STAGGERED

Color :

Black

Mounting Option 1 :

LOCKING

Total Number of Contacts :

6

Package Quantity :

800

Filter Feature :

No

MIL Conformance :

No

Operating Temperature :

-40°C~70°C

Packaging :

Tape and Reel (TR)

ELV :

Compliant

Gender :

Receptacle

PCB Thickness :

1.6mm

Connector Type :

JACK

Insulation Resistance :

500000000Ohm

Depth :

18.1mm

Max Voltage Rating (AC) :

150V

Published :

2003

Number of Positions :

6

Current Rating :

1.5A

Body Breadth :

0.453 inch

Element Configuration :

Single

Reliability :

COMMERCIAL

Number of Ports :

1

REACH SVHC :

No SVHC

Additional Feature :

LOW PROFILE

Factory Lead Time :

5 Weeks

Mixed Contacts :

No

Feature :

Board Lock

Shielding :

Unshielded

Mounting Type :

Through Hole

Length - Tail :

3.2004mm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Contact Finish :

Gold

Contact Material :

Phosphor Bronze

Ratings :

Cat3

Durability :

750 Cycles

IEC Conformance :

No

LED Color :

Does Not Contain LED

Reference Standard :

UL, CSA

DIN Conformance :

No

Length :

13.2mm

PCB Mounting Orientation :

RIGHT ANGLE

Contact Style :

TELCOM, MODULAR

RoHS Status :

RoHS Compliant

Lead Free :

Lead Free

Tab Direction :

Down

Housing Material :

Polybutylene Terephthalate (PBT)

Keyed :

No

Flammability Rating :

UL94 V-0

Plating Thickness :

50μin

Pbfree Code :

yes

Number of Positions/Contacts :

6p6c (RJ11, RJ12, RJ14, RJ25)

Insertion Force-Max :

23.5744 N

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Current Rating :

1.5A

Voltage - Rated :

150V

UL Flammability Code :

94V-0

Orientation :

90° Angle (Right)
