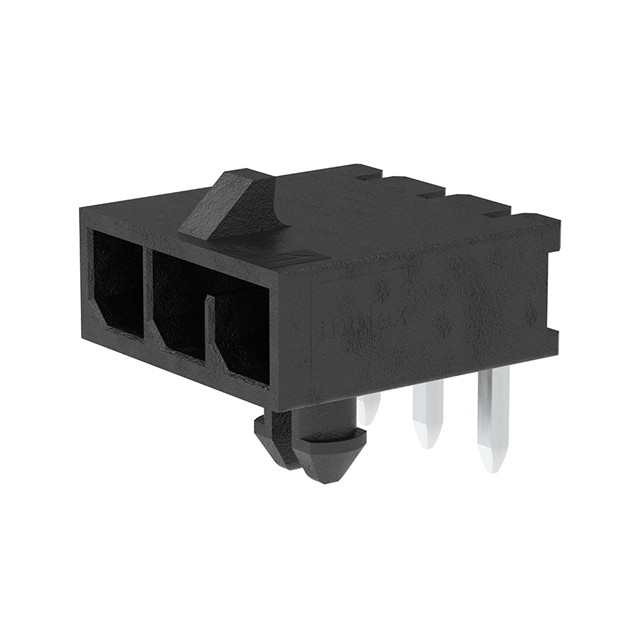

2157602005

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mated Stacking Heights :

-

Contact Type :

Male Pin

Pitch - Mating :

0.118 (3.00mm)

Number of Positions :

5

Connector Type :

Header

Contact Finish Thickness - Mating :

15.0μin (0.38μm)

Number of Rows :

1

Housing Color :

Black

Overall Contact Length :

-

Number of Positions Loaded :

All

Mounting Style :

PCB Mount

Contact Length - Post :

0.125 (3.18mm)

Current Rating (Amps) :

Varies by Wire Gauge

Operating Temperature :

-40°C ~ 105°C

Product Type :

Headers and Wire Housings

Fastening Type :

Locking Ramp

Style :

Board to Cable/Wire

Contact Finish - Mating :

Gold

Product :

Headers

Insulation Color :

Black

Contact Finish Thickness - Post :

-

Row Spacing - Mating :

-

Housing Gender :

Receptacle

Termination :

Solder

Insulation Resistance :

1000 MOhms

Contact Length - Mating :

-

Application :

Wire-to-Board, Power

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Series :

Micro-Fit+ 215760

Type :

Header Assemblies

Termination Style :

Solder Pin

Contact Shape :

Square

Mounting Type :

Through Hole, Right Angle

Shrouding :

Shrouded - 4 Wall

Contact Finish - Post :

Tin

Mounting Angle :

RIGHT ANGLE

Subcategory :

Headers and Wire Housings

Features :

Board Lock, Glow Wire Compliant

Contact Material :

COPPER ALLOY

Contact Plating :

Gold Plated Contacts

Pitch :

3 mm

Material Flammability Rating :

UL94 V-0

Insulation Height :

0.173 (4.40mm)

Voltage Rating :

600VAC/DC

Minimum Operating Temperature :

- 40 C

Base Product Number :

215760

Ingress Protection :

-

Maximum Operating Temperature :

+ 105 C

Product Status :

Active

Package :

Tray

Applications :

-

Flammability Rating :

UL 94 V-0
