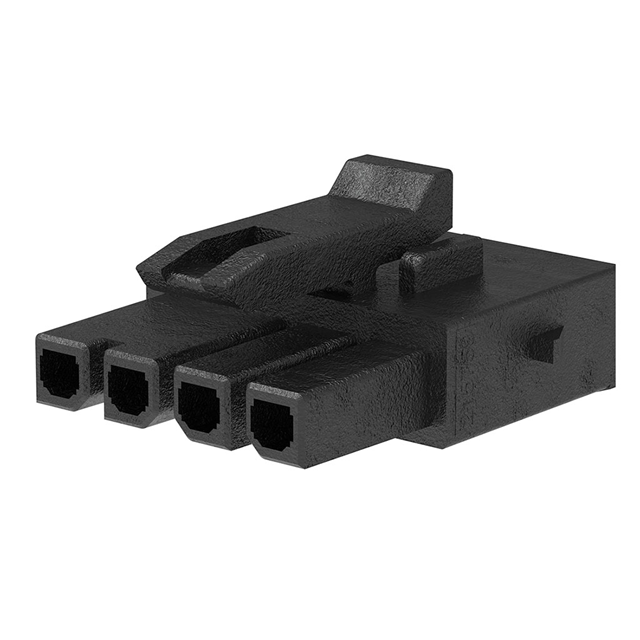

2157591004

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Mounting Type :

Free Hanging (In-Line)

Series :

215759

For Use With :

Molex Micro-Fit+ 206460 Series Socket Terminals

Application :

Power, Wire-to-Board

Number of Contacts :

4

Color :

Black

Connector Type :

Receptacle

Product :

Wire Housings

Flammability Rating :

UL 94 V-0

Housing Gender :

Receptacle

Tradename :

Micro-Fit+

Row Spacing :

-

Contact Termination :

Crimp

Minimum Operating Temperature :

- 40 C

Number of Positions :

4 Position

Maximum Operating Temperature :

+ 105 C

Mounting Angle :

Straight

Insulation Resistance :

1000 MOhms

Gender :

Receptacle

Number of Rows :

1 Row

Termination Style :

Crimp

Mounting Style :

Cable Mount / Free Hanging

Body Orientation :

Horizontal

Housing Color :

Black

Product Status :

Active

Base Product Number :

215759

RoHS :

Details

Features :

Glow Wire Compliant

Contact Type :

Female Socket

Fastening Type :

Latch Lock

Housing Material :

Polyamide (PA)

Package :

Bag

Pitch :

3 mm

Type :

Micro-Fit Receptacle Housing
