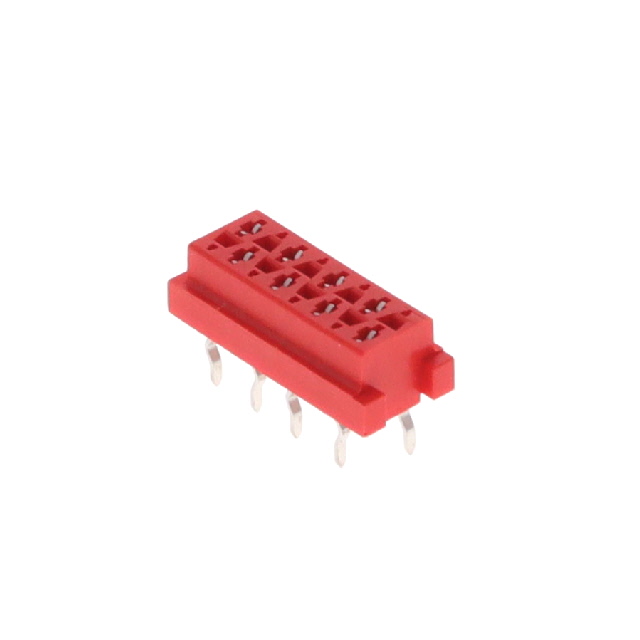

215079-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

Number of Positions :

8

Reliability :

COMMERCIAL

Mount :

Through Hole

Housing Material :

Polyester

Additional Feature :

POLARIZED, TOP ENTRY

Max Voltage Rating (DC) :

100V

Contact Current Rating :

1.5A

Insulator Color :

Red

Insulation Height :

0.157 4.00mm

Contact Type :

Forked

DIN Conformance :

No

Contact Material :

Phosphor Bronze

Row Spacing - Mating :

0.100 (2.54mm)

IEC Conformance :

No

Packaging :

Tape and Reel (TR)

Connector Type :

Receptacle

Termination :

Kinked Pin, Solder

Fastening Type :

Push-Pull

Reference Standard :

UL

Number Of PCB Rows :

2

Mating Contact Pitch :

0.05 inch

Filter Feature :

No

Flammability Rating :

UL94 V-0

Orientation :

Vertical

Voltage - Rated :

100Vdc

REACH SVHC :

No SVHC

Radiation Hardening :

No

Insulation Resistance :

1GOhm

Operating Temperature :

-40°C~105°C

Contact Gender :

FEMALE

Number of Conductors :

ONE

Applications :

Automotive, General Purpose

Length :

12.2mm

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Through Hole

Contact Length - Post :

0.122 3.10mm

Number of Positions Loaded :

All

Operating Supply Voltage :

100V

Current Rating :

1.5A

Lead Length :

3.0988mm

Contact Finish - Mating :

Tin

Style :

Board to Board or Cable

Depth :

5.1mm

Lead Free :

Lead Free

Series :

Micro-MaTch

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Material Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Pitch - Mating :

0.100 2.54mm

Factory Lead Time :

14 Weeks

ELV :

Compliant

Published :

1997

Plating Thickness :

5 nm

Height :

4.064mm

Mating Connector Lock :

Without

MIL Conformance :

No

Insulation Material :

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

PCB Mount Retention :

With

Housing Color :

Red
