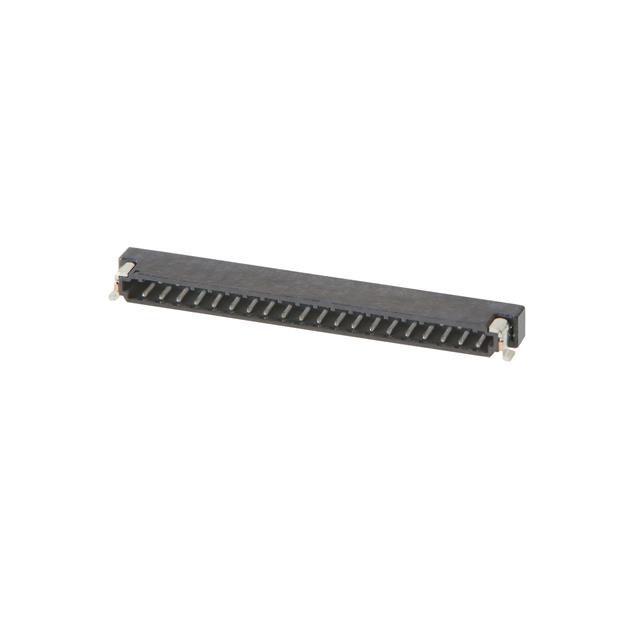

2147210200

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Tradename :

Zero-Hachi

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Mounting Angle :

RIGHT ANGLE

Contact Type :

Forked

Applications :

General Purpose, Telecommunications

Mated Stacking Heights :

-

Insulation Color :

Black

Series :

214721

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Style :

Board to Cable/Wire

Voltage Rating :

30 V

Fastening Type :

Detent Lock

Minimum Operating Temperature :

- 40 C

Contact Length - Post :

-

Housing Color :

Black

Product :

Headers

Insulation Material :

Liquid Crystal Polymer (LCP)

Packaging :

Reel

Pitch :

0.8 mm

Pitch - Mating :

0.031 (0.80mm)

Mounting Type :

Surface Mount, Right Angle

Maximum Operating Temperature :

+ 85 C

Contact Plating :

Tin

Insulation Height :

0.063 (1.60mm)

Features :

Solder Retention

Ingress Protection :

-

Current Rating :

1 A

Contact Shape :

-

Current Rating (Amps) :

1A

Termination Style :

Crimp

Base Product Number :

214721

Number of Positions :

20

RoHS :

Details

Housing Gender :

Male

Operating Temperature :

-40°C ~ 85°C

Contact Finish - Post :

Tin

Contact Material :

COPPER ALLOY

Package :

Cut Tape (CT);Digi-Reel®;Bulk;

Product Status :

Active

Row Spacing - Mating :

-

Number of Rows :

1 Row

Contact Finish - Mating :

Tin

Connector Type :

Header

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Termination :

Solder

Mounting Style :

PCB Mount
