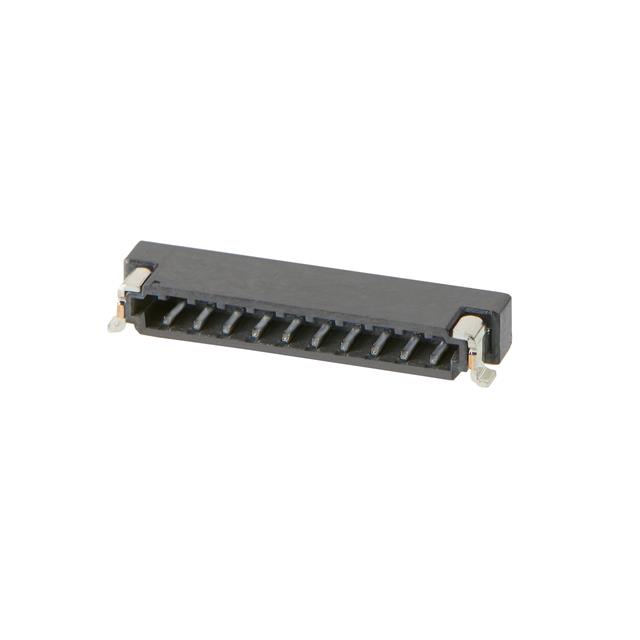

2147210100

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Connector Type :

Header

Current Rating (Amps) :

1A

Contact Material :

COPPER ALLOY

Body Orientation :

Right Angled

Insulation Height :

0.063 (1.60mm)

Product :

Headers

Mounting Type :

Surface Mount

Ingress Protection :

-

Number of Contacts :

10

Pitch :

0.8 mm

Contact Plating :

Tin

Contact Finish - Post :

Tin

Voltage Rating :

30 V

Insulation Color :

Black

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Current Rating :

1 A

Mounting Style :

PCB Mount

Number of Positions Loaded :

All

Pitch - Mating :

0.031 (0.80mm)

Series :

214721

Termination Method :

Solder

Maximum Operating Temperature :

+ 85 C

Operating Temperature :

-40°C ~ 85°C

Contact Type :

Forked

Housing Gender :

Male

Tradename :

Zero-Hachi

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Minimum Operating Temperature :

- 40 C

Applications :

General Purpose, Telecommunications

Features :

Solder Retention

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Contact Finish - Mating :

Tin

Fastening Type :

Detent Lock

Mounting Angle :

RIGHT ANGLE

Contact Shape :

-

Style :

Board to Cable/Wire

Packaging :

Cut Tape

Number of Rows :

1 Row

Housing Color :

Black

Connector System :

Wire to Board

Row Spacing - Mating :

-

RoHS :

Details

Base Product Number :

214721

Termination Style :

Crimp

Material Flammability Rating :

UL94 V-0

Insulation Material :

Liquid Crystal Polymer (LCP)

Number of Positions :

10

Termination :

Solder

Contact Length - Post :

-

Product Status :

Active

Mated Stacking Heights :

-
