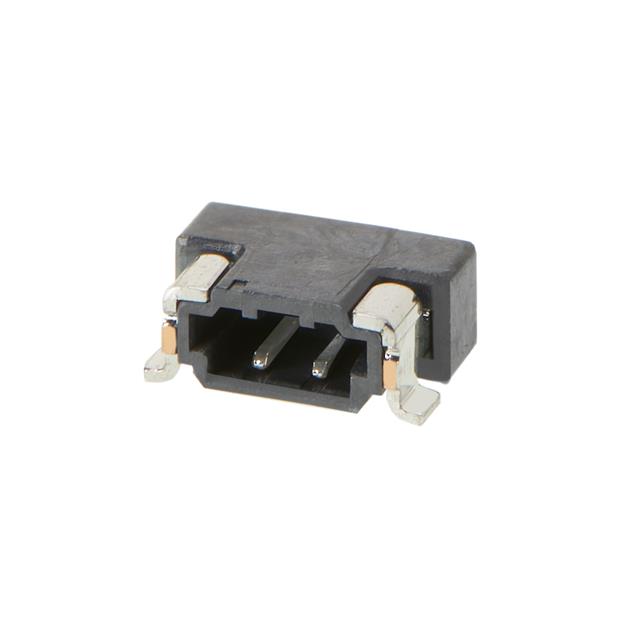

2147210020

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Operating Temperature :

-40°C ~ 85°C

Product Status :

Active

Body Orientation :

Right Angled

Base Product Number :

214721

Current Rating (Amps) :

1.5A

Pitch :

0.8 mm

Mounting Style :

PCB Mount

Contact Finish - Mating :

Tin

Termination Method :

Surface Mount

Connector System :

Wire to Board

Number of Positions :

2

Contact Material :

COPPER ALLOY

Insulation Material :

Liquid Crystal Polymer (LCP)

Series :

214721

Ingress Protection :

-

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Length - Post :

-

Material Flammability Rating :

UL94 V-0

Current Rating :

1 A

Minimum Operating Temperature :

- 40 C

Insulation Color :

Black

Number of Positions Loaded :

All

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Mounting Type :

Surface Mount

Tradename :

Zero-Hachi

Insulation Height :

0.063 (1.60mm)

Housing Color :

Black

Contact Finish - Post :

Tin

Connector Type :

Header

Mated Stacking Heights :

-

Housing Gender :

Male

Product :

Headers

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Row Spacing - Mating :

-

Maximum Operating Temperature :

+ 85 C

Fastening Type :

Detent Lock

Termination :

Solder

Contact Type :

Forked

Applications :

General Purpose, Telecommunications

Number of Contacts :

2

Number of Rows :

1 Row

Mounting Angle :

RIGHT ANGLE

Pitch - Mating :

0.031 (0.80mm)

Termination Style :

Crimp

Features :

Solder Retention

Contact Plating :

Tin

Voltage Rating :

30 V

Contact Shape :

-

RoHS :

Details

Style :

Board to Cable/Wire

Packaging :

Cut Tape
