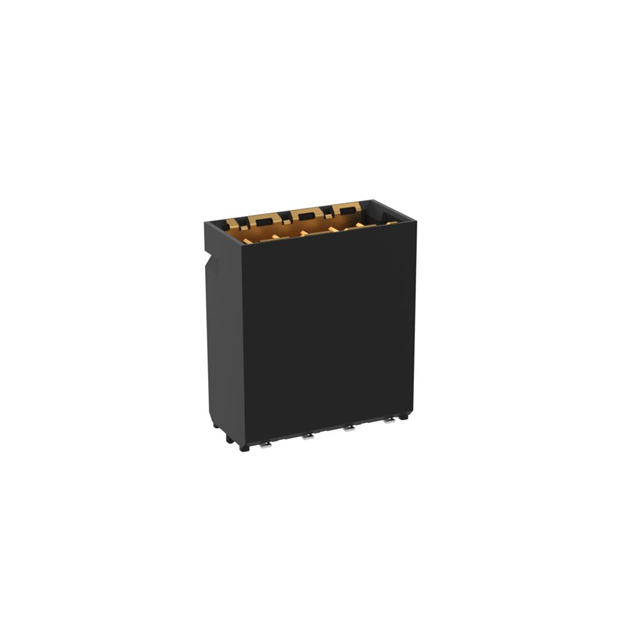

214552

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Contact Resistance :

4 mΩ

Connector Type :

RECTANGULAR POWER CONNECTOR

Empty Shell :

No

ECCN Code :

EAR99

Packaging :

Tape and Reel

Contact Plating :

Gold

Pbfree Code :

yes

Total Number of Contacts :

5

HTS Code :

8536.69.40.30

Termination Method :

Solder

Operating Temperature Min Deg. C :

-55C

Gender :

M

Body Breadth :

0.23 inch

Dielectric Withstanding Voltage :

1050VAC V

Pitch (mm) :

2(mm)

DIN Conformance :

No

Mounting Option 1 :

LOCKING

Mixed Contacts :

No

Number of Contacts :

5(POS)

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Product Height (mm) :

15.3(mm)

Reference Standard :

UL

Contact Arrangement :

S0P5

Operating Temperature Max Deg. C :

125C

Product Depth (mm) :

5.85(mm)

Board Mounting Option :

PEG

Insulation Resistance :

10000000000 Ω

Body Depth :

0.543 inch

Product Length (mm) :

12.15(mm)

Additional Feature :

RoHS Compliant

Current Rating (Max) :

6.6/CONTACT(A)

Subcategory :

Headers and Edge Type Connectors

Reach Compliance Code :

Compliant

Manufacturer :

ERNI

Durability :

500 Cycles

JESD-609 Code :

e3

Body/Shell Style :

Receptacle

Termination Type :

Surface Mount

Mounting Type :

BOARD

Mounting Style :

Surface Mount

MIL Conformance :

No

Operating Temp Range :

-55C to 125C

Contact Gender :

Male

Filter Feature :

No

Reliability :

COMMERCIAL

Contact Material :

COPPER ALLOY

Number of Terminals :

5

Contact Finish Termination :

TIN (236)

Number of Ports :

1(Port)

Body Orientation :

Straight

Shell Material :

LIQUID CRYSTAL POLYMER

IEC Conformance :

No
