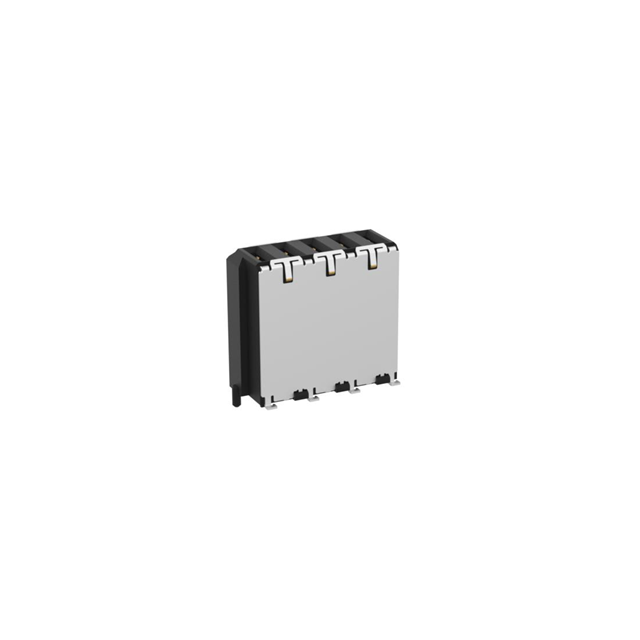

214549

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Product Depth (mm) :

5.5(mm)

HTS Code :

8536.69.40.30

Contact Resistance :

4 mΩ

Current Rating (Max) :

6.6/CONTACT(A)

Shell Material :

LIQUID CRYSTAL POLYMER

Filter Feature :

No

Contact Resistance Max :

4(mohm)

Mounting Type :

BOARD

Contact Material :

COPPER ALLOY

Pitch (mm) :

2(mm)

Body/Shell Style :

PLUG

Reach Compliance Code :

Compliant

Contact Gender :

FEMALE

Termination Type :

Surface Mount

ECCN Code :

EAR99

Subcategory :

Headers and Edge Type Connectors

Body Depth :

0.386 inch

Option :

GENERAL PURPOSE

Mounting Option 1 :

LOCKING

Termination Method :

Solder

Pbfree Code :

yes

Insulation Resistance :

10000000000 Ω

Total Number of Contacts :

5

Product Length (mm) :

11.55(mm)

IEC Conformance :

No

Contact Finish Termination :

Tin (Sn)

Body Breadth :

0.163 inch

Reference Standard :

UL

Number of Contacts :

5(POS)

Connector Type :

RECTANGULAR POWER CONNECTOR

Packaging :

Tape and Reel

JESD-609 Code :

e3

DIN Conformance :

No

Durability :

500 Cycles

Empty Shell :

No

Reliability :

COMMERCIAL

Gender :

F

Dielectric Withstanding Voltage :

1050VAC V

Body Orientation :

Straight

Additional Feature :

RoHS Compliant

Mixed Contacts :

No

Mounting Style :

Surface Mount

Contact Arrangement :

S0P5

MIL Conformance :

No

Type :

Board to Board

Board Mounting Option :

PEG

Operating Temp Range :

-55C to 125C

UL Flammability Code :

94V-0

Number of Contact Rows :

1

Manufacturer :

ERNI

Contact Plating :

Gold
