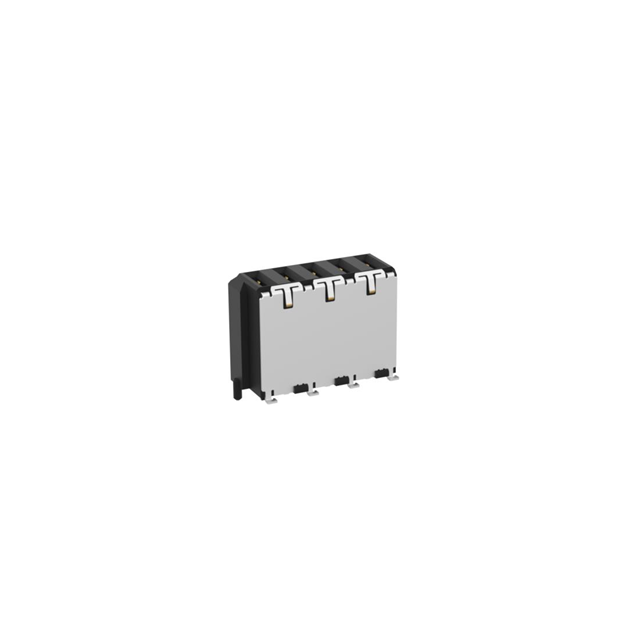

214548

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Contact Material :

COPPER ALLOY

Number of Terminals :

5

UL Flammability Code :

94V-0

Product Height (mm) :

9.4(mm)

Contact Finish Termination :

TIN (236)

Operating Temperature Min Deg. C :

-55C

Contact Gender :

FEMALE

IEC Conformance :

No

Operating Temp Range :

-55C to 125C

Termination Method :

Solder

Shell Material :

LIQUID CRYSTAL POLYMER

Mounting Type :

BOARD

DIN Conformance :

No

Reach Compliance Code :

Compliant

Pitch (mm) :

2(mm)

Option :

GENERAL PURPOSE

Empty Shell :

No

Operating Temperature Max Deg. C :

125C

Gender :

F

Mixed Contacts :

No

Contact Plating :

Gold

Termination Type :

Surface Mount

MIL Conformance :

No

Packaging :

Tape and Reel

Connector Type :

RECTANGULAR POWER CONNECTOR

Product Length (mm) :

11.55(mm)

Number of Ports :

1(Port)

Pbfree Code :

yes

Mounting Style :

Surface Mount

Current Rating (Max) :

6.6/CONTACT(A)

Total Number of Contacts :

5

Body Orientation :

Straight

JESD-609 Code :

e3

Product Depth (mm) :

4.15(mm)

Number of Contacts :

5(POS)

Filter Feature :

No

Manufacturer :

ERNI
